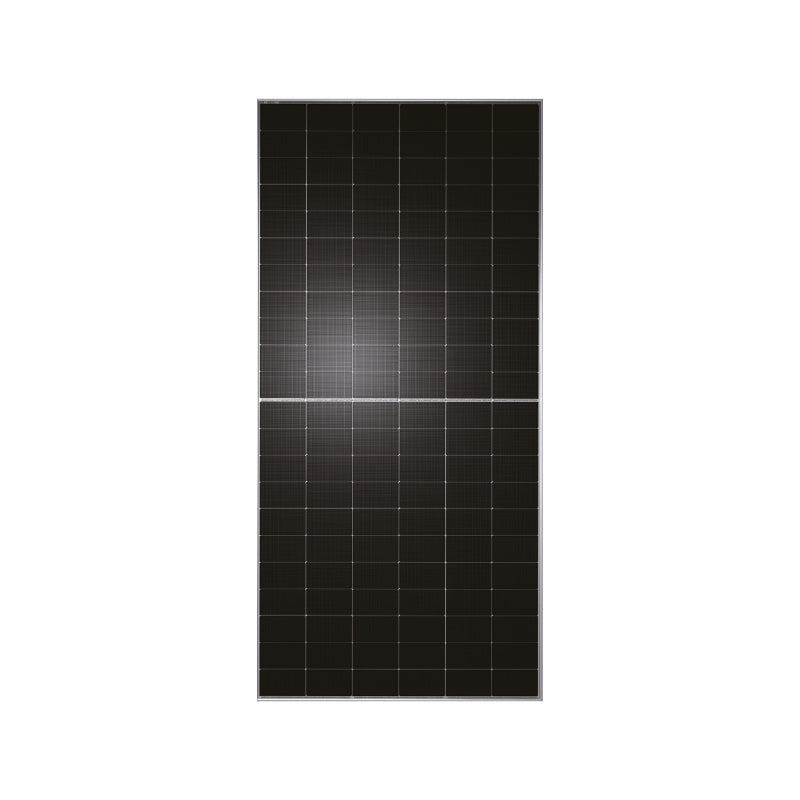

Pallet of 36 TW Solar TNC Bifacial Dual Glass 625 W bifacial solar modules 22.5 kWp
Pallet of 36 TW Solar TNC Bifacial Dual Glass 625 W bifacial solar modules 22.5 kWp
Regular price
€4,602.22
Regular price
Sale price
€4,602.22
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Companies and private customers outside Italy: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — read more.
Non-Italian companies entitled to 0% VAT: write to info@litio.store.
Companies and private customers outside Italy: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — read more.
Non-Italian companies entitled to 0% VAT: write to info@litio.store.
Delivery in 10-20 days12-year warrantyTW Solar
Shipping costs
Italy: €120. European Union: €350.
Italy: €120. European Union: €350.
Full pallet of 36 modules. Flat shipping: €120.
Pallet of 36 TW Solar TNC Bifacial Dual Glass 625 W bifacial solar modules 22.5 kWp
Full pallet of 36 TW Solar modules rated 625 W, for a total of 22.5 kWp. Buying the complete pallet costs less than buying single modules and is the usual choice for a complete residential or commercial system.
The TW Solar TWMNH-66HD625W is a 625 W bifacial dual glass module at 23.1 % efficiency, built by Tongwei with 132 N-type TNC (TOPCon) half-cells on G12R rectangular wafers in a 2382 × 1134 mm format. The laminate uses two 2.0 mm heat-strengthened glass sheets, the front one with an anti-reflective coating, and the bifaciality factor of 80 % ± 5 % allows light reflected off the mounting surface to be harvested too, with documented production gains from 5 % to over 28 % depending on mounting configuration and albedo.
This module is aimed at commercial, industrial and utility scale projects: warehouses, ballasted flat roofs, carports and ground-mounted parks, where high power per panel cuts the number of modules, connections and structural components for the same installed kWp. N-type cells are immune to light-induced degradation and show a power temperature coefficient of -0.28 %/°C, with a good response in low light conditions. The glass-glass structure ensures resistance to moisture, ammonia and salt mist, with certified loads of 5400 Pa on the front and 2400 Pa on the rear and a 30-year linear warranty on power.
Key features
625 W and 23.1 % efficiencyHigh power density in a 2382 × 1134 mm format: fewer modules, fewer strings and less structure for the same installed capacity.
Bifaciality 80 % ± 5 %The documented rear gain runs from 5 % to over 28 % depending on albedo and mounting configuration.
Dual glass 2.0 + 2.0 mmA heat-strengthened glass-glass laminate with no backsheet: high resistance to moisture, ammonia, salt mist and potential induced degradation.
N-type TOPCon cells on G12R wafersThe rectangular G12R wafer optimises module packing and reduces resistive losses compared with traditional square formats.
Temperature coefficient -0.28 %/°CContained power losses at high temperature, for a specific yield advantage through the summer months.
30-year yield warrantyThirty years of linear power warranty, with 1 % degradation in the first year and 0.4 % per year thereafter.
Technical specifications
| Feature | Value |
|---|---|
| Product code | TWMNH-66HD625W |
| Modules per pallet | 36 pcs |
| Total pallet output | 22.5 kWp |
| Manufacturer | TW Solar |
| Series | TNC 1.0 – TWMNH-66HD |
| Rated power (STC) | 625 Wp |
| Module efficiency | 23.1 % |
| Cell technology | N-Type TNC (TOPCon) |
| Cells | 132 semicelle (66 celle in serie) N-type TNC (TOPCon) |
| Voltage at Pmax (Vmp) | 40.96 V |
| Current at Pmax (Imp) | 15.26 A |
| Open circuit voltage (Voc) | 49.3 V |
| Short circuit current (Isc) | 16.12 A |
| Temperature coefficient of Pmax | -0.28 %/°C |
| Bifacial | Yes |
| Glass | Doppio vetro: 2.0 mm anteriore semi-temperato con rivestimento antiriflesso + 2.0 mm posteriore semi-temperato |
| Frame | Argento |
| Dimensions (L × W × D) | 2382 × 1134 × 30 mm |
| Weight | 32.5 kg |
| Maximum system voltage | 1500 V DC |
| Maximum series fuse | 30 A |
| Protection rating | IP68 (cassetta di giunzione con 3 diodi) |
| Snow load | 5400 Pa |
| Wind load | 2400 Pa |
| Product warranty | 12 years |
| Performance warranty | 30 years |
Documentation
PDFDatasheet TNC Bifacial Dual GlassOfficial manufacturer documentSeries or parallel wiring must respect the voltage and current limits of the inverter MPPTs and the electrical design of the system.
