String inverter Huawei SUN2000-115KTL-M2 115 kW three-phase 10 MPPT
String inverter Huawei SUN2000-115KTL-M2 115 kW three-phase 10 MPPT
Regular price
€5,190.55
Regular price
Sale price
€5,190.55
Unit price
per
Tax included.
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices include 22% Italian VAT; the reduced 10% rate covers only goods for photovoltaic and storage systems, with a customer declaration. From abroad: choose 22% VAT, or for 0% VAT place the order by bank transfer without paying and we send you a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysString inverter115 kW10 MPPTHuawei
String inverter Huawei SUN2000-115KTL-M2 115 kW three-phase 10 MPPT

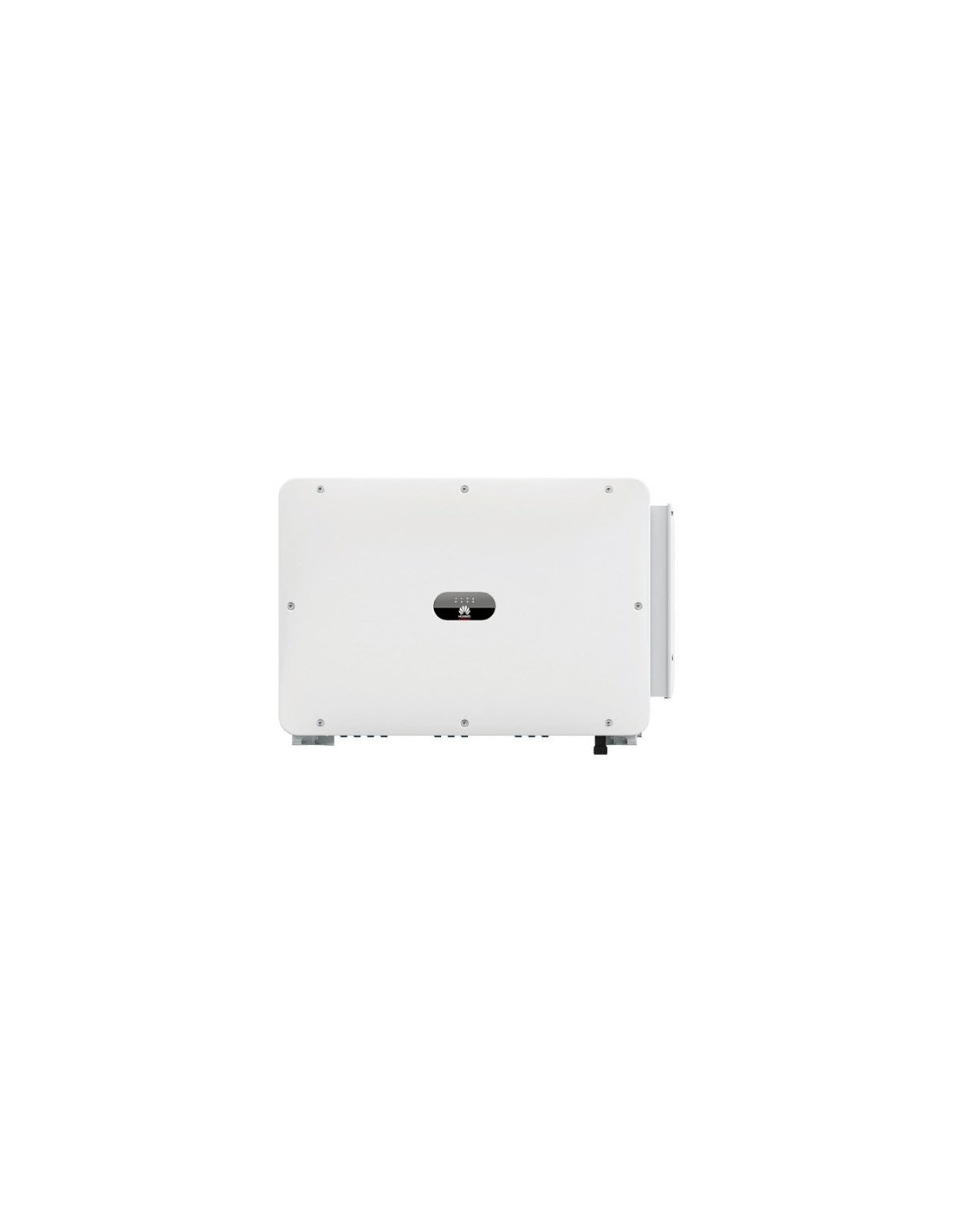

The Huawei SUN2000-115KTL-M2 is a three-phase string inverter rated 115 kW for grid-connected PV systems: it converts the energy of the modules into alternating current and feeds it into the building installation or the grid.
The interface protections and grid parameters are those required for connection in Italy to CEI 0-21 (low voltage) and CEI 0-16 (medium voltage). The inputs are 10 MPPT, with independent MPPT tracking: useful when the strings have different exposure or when part of the array is shaded for some hours of the day.
Huawei FusionSolar brings to PV the power electronics and software of a network equipment maker: string diagnostics, remote updates and integration with optimisers and LUNA2000 storage.
Key strengths
MPPT trackingIndependent inputs get the most out of strings with different orientation or shading.
High efficiencyElectronics sized for low conversion losses across the whole load curve.
CEI complianceGrid settings for connection in Italy to CEI 0-21 and CEI 0-16.
Built-in monitoringManufacturer portal and app for yield, alarms and string data.
Standard protectionsDC disconnector, surge protection and insulation monitoring to earth.
Outdoor installationProtected enclosure for wall mounting even outside the plant room.
Technical specifications
| Feature | Value |
|---|---|
| Product code | SUN2000-115KTL-M2 |
| Manufacturer | Huawei |
| Series | M2 |
| Type | String inverter |
| Rated power | 115 kW |
| Power supply | Three-phase 400 V |
| MPPT trackers | 10 |
| Hybrid inverter | No, PV-only inverter |
| Dimensions (W x D x H) | 1035 x 700 x 365 mm |
| Certifications | CEI 0-21, CEI 0-16 |
| Mounting | Wall mounted |
