CHINT DTSU666 Three-Phase Bidirectional Energy Meter — RS485 Modbus for Hybrid Inverters
CHINT DTSU666 Three-Phase Bidirectional Energy Meter — RS485 Modbus for Hybrid Inverters
Regular price
€165.61
Regular price
Sale price
€165.61
Unit price
per
Tax included.
AVAILABILITY
6 units in stock at our supplier
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices shown include 22% Italian VAT. The 10% rate applies only to goods for photovoltaic and storage systems, with a declaration from the customer. From outside Italy: pick 22% VAT, or for 0% VAT place the order by bank transfer without paying and we will send a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysCHINT

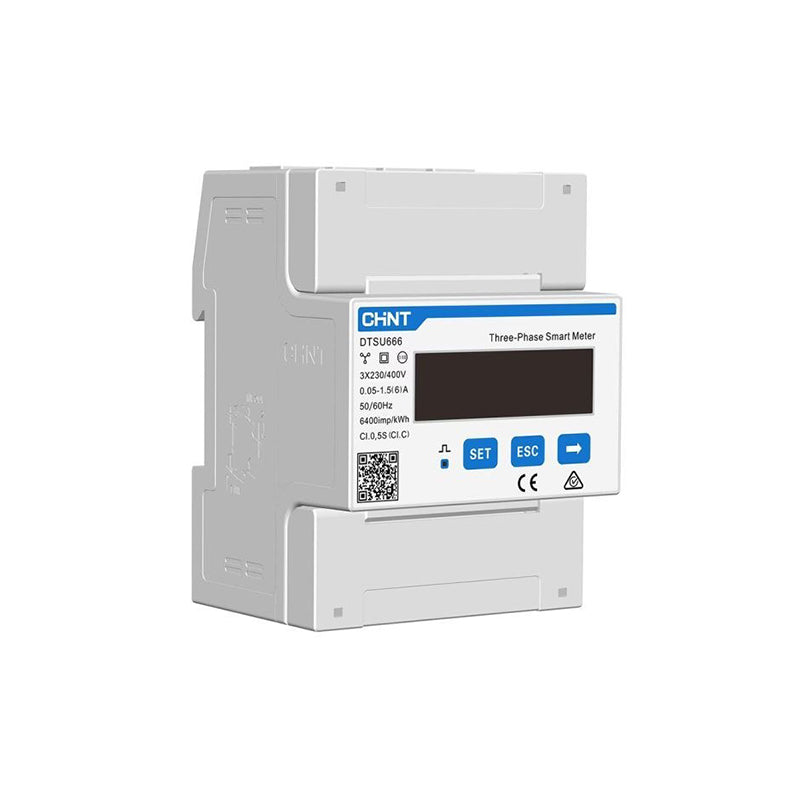

CHINT DTSU666 Three-Phase Bidirectional Energy Meter — RS485 Modbus for Hybrid Inverters
A hybrid inverter without a meter works blind: it does not know how much the house is drawing, so it cannot tell how much energy to keep and how much to export. A bidirectional meter is what makes real self-consumption possible, and on new installations it is also what keeps export within the limit.
The DTSU666 is the three-phase version, the one half the inverter makers rebadge. It measures through external current transformers, so you pick the rating to suit the line, and it communicates over RS485 Modbus.
At a glance
Product code: DTSU666CHINT makes the DDSU and DTSU666 meters — the ones many inverter manufacturers resell under their own brand. Buying the CHINT-badged version means buying the same instrument.
Brand: CHINTCHINT makes the DDSU and DTSU666 meters — the ones many inverter manufacturers resell under their own brand. Buying the CHINT-badged version means buying the same instrument.
Phase: Three-PhaseCHINT makes the DDSU and DTSU666 meters — the ones many inverter manufacturers resell under their own brand. Buying the CHINT-badged version means buying the same instrument.
Measurement: with external CTsCHINT makes the DDSU and DTSU666 meters — the ones many inverter manufacturers resell under their own brand. Buying the CHINT-badged version means buying the same instrument.
Direction: bidirectional, import and exportCHINT makes the DDSU and DTSU666 meters — the ones many inverter manufacturers resell under their own brand. Buying the CHINT-badged version means buying the same instrument.
Technical data
| Specification | Value |
|---|---|
| Product code | DTSU666 |
| Brand | CHINT |
| Phase | Three-Phase |
| Measurement | with external CTs |
| Direction | bidirectional, import and export |
| Communication | RS485 Modbus |
| Mounting | DIN rail |
