FG16OR16 5G three-phase cable by the metre with yellow-green earth, 5G1.5 to 5G16, CPR 0.6/1kV

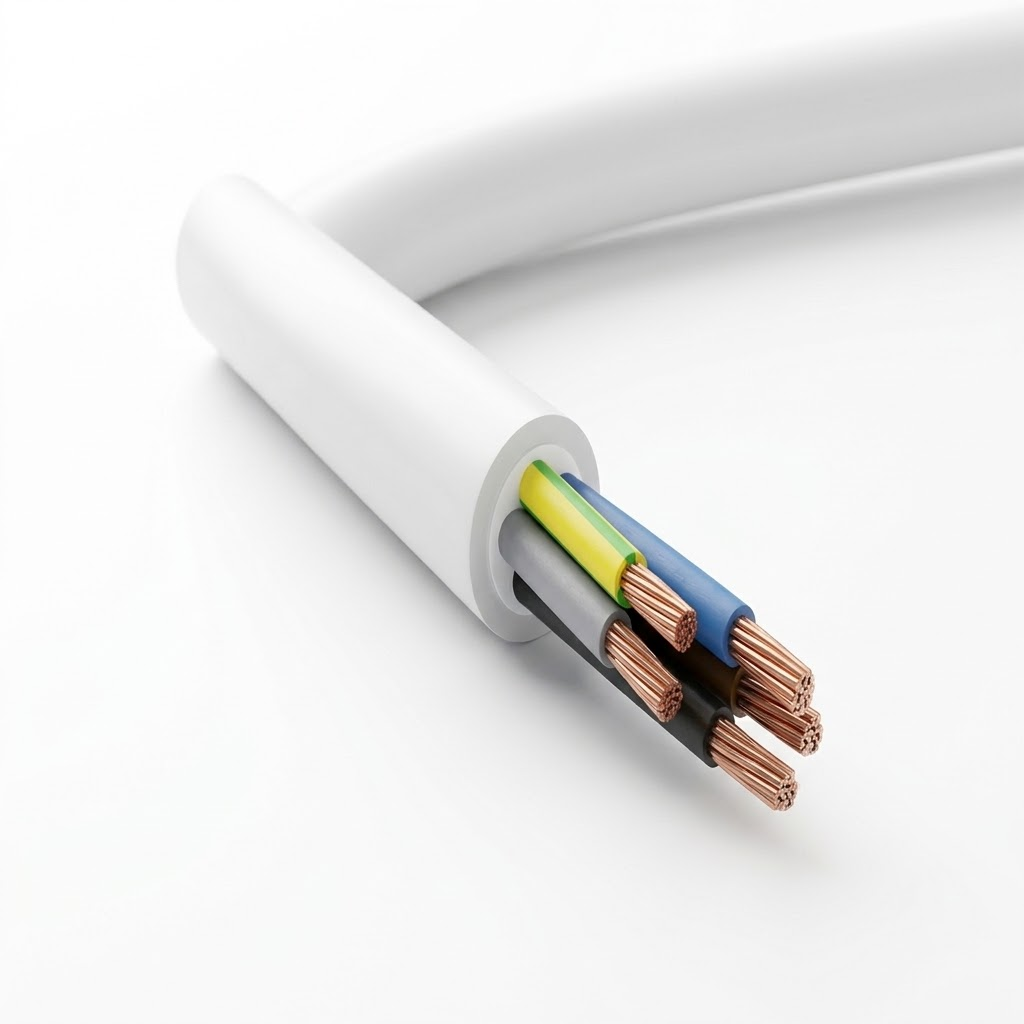

FG16OR16 five-core cable with yellow-green conductor, sold by the metre. It is the cable for three-phase lines: three phases, neutral and earth in the same sheath.
Use it to connect three-phase hybrid inverters, Victron systems in three-phase configuration, PV combiner boxes and distribution boards. Suitable for indoor, outdoor and underground installation.
Key features
Three-phase with earthFive conductors: L1, L2, L3, neutral and yellow-green.
FlexibleClass 5 copper strand.
By the metreOrder only the metres you need.
CPR standardCompliant with the Construction Products Regulation.
Technical specifications
| Feature | Value |
|---|---|
| Cable type | FG16OR16 multicore, compliant with CPR regulation (EU 305/2011) |
| Fire reaction class | Cca-s3,d1,a3 (EN 50575) |
| Rated voltage | 0.6/1kV |
| Conductor | Flexible annealed copper, class 5 (IEC 60228) |
| Insulation | HEPR G16 ethylene propylene rubber, 90°C |
| Sheath | Grey PVC |
| Max operating temperature | 90°C |
| Short-circuit temperature | 250°C |
| Min bending radius | 4 times the diameter |
| Installation | Fixed, indoor and outdoor, also underground |
| Sold | By the metre: the quantity in the cart is the number of metres |
Available sizes
| Cores x size | Typical use |
|---|---|
| 5G1.5 | Three-phase controls and small loads |
| 5G2.5 | Three-phase lines up to 16A |
| 5G4 | Three-phase lines up to about 25A |
| 5G6 | Three-phase inverters up to about 32A |
| 5G10 | High-power three-phase inverters |
| 5G16 | Main feeders and long runs |
Ratings are indicative: the cross-section must be checked according to IEC 60364-5-52 / CEI-UNEL 35024-1 based on length, installation method and protection.
