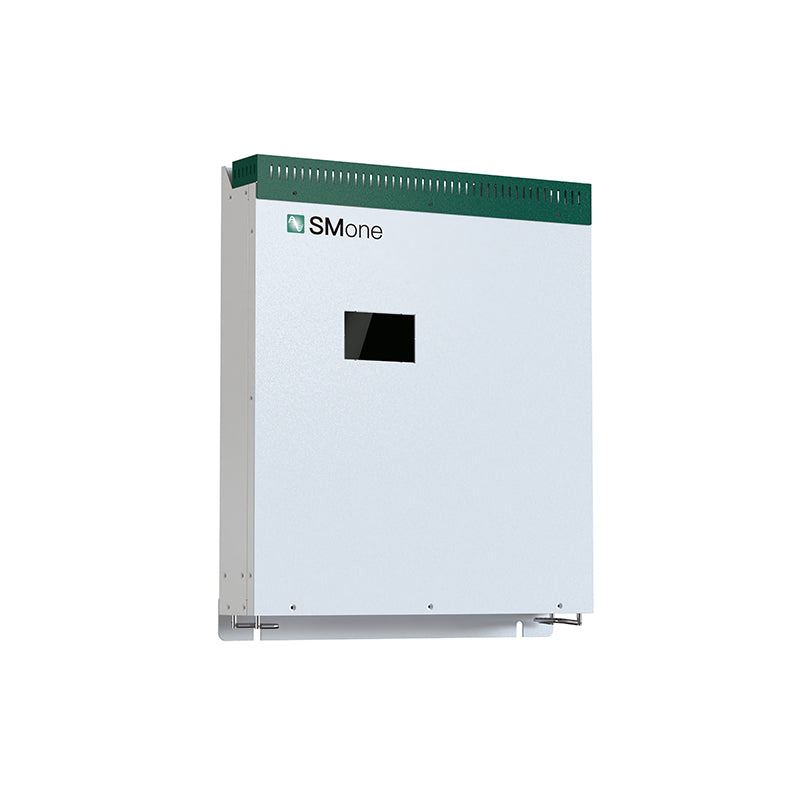

SMone SM-ASVG-100-0.4-4L-W ASVG Active Compensator 100 kVAr 400 V with Wall-Mounted Panel
The SMone SM-ASVG-100-0.4-4L-W is a static active reactive power compensator rated 100 kVAr for 400 V three-phase networks, the largest size in the wall-mounted range with control panel. It is intended for industrial installations, medium to large photovoltaic plants and commercial users with high reactive energy consumption.
The IGBT electronics generate the compensation current in less than 10 ms, correcting the cos φ, filtering harmonics from the 2nd to the 23rd order and rebalancing the asymmetry between the phases. It is installed on the wall indoors (IP20), with a 3L+N+PE connection and measurement through external current transformers; cooling is by forced ventilation. Configuration and diagnostics are carried out from the integrated colour touchscreen panel, with an RS485 Modbus interface for supervision.
Key features
100 kVAr in a single moduleIt covers the reactive power demand of industrial users without resorting to several capacitor banks and their contactor assemblies.
Stepless dynamic compensationThe power delivered varies continuously from 0 to 100 kVAr, eliminating the transients typical of step-switched power factor correction.
Harmonic filter up to the 23rd orderIt reduces current harmonic distortion, with benefits for losses, cable heating and transformer life.
Response time < 10 msSuitable for highly variable loads such as welding machines, presses, lifts and drives.
Asymmetry rebalancingEach phase is compensated independently, reducing the neutral current and the voltage imbalances.
Integrated supervisionOn-board colour touchscreen panel and RS485 Modbus communication for remote monitoring of cos φ and harmonics.
Technical specifications
| Feature | Value |
|---|---|
| Product code | 106027 |
| Model | SM-ASVG-100-0.4-4L-W |
| Type | Active static reactive power compensator (ASVG) with harmonic filter |
| Reactive power | 100 kVAr (inductive and capacitive) |
| Rated voltage | 400 V AC (range 304–456 V) |
| Phases | Three-phase 3L + N + PE |
| Frequency | 50 Hz (range 45–63 Hz) |
| Compensation type | Dynamic, per individual phase, with unbalance correction |
| Harmonic filtering | From the 2nd to the 23rd harmonic |
| Response time | < 10 ms |
| Efficiency | > 97 % |
| Compensation factor | > 95 % |
| Current transformers (CT) | External, not included |
| Cooling | Forced ventilation |
| Communication | RS485 Modbus, integrated colour touch panel |
| Mounting | Wall-mounted |
| Protection rating | IP20 |
| Operating temperature | Da -20 a +50 °C |
| Dimensions | 500 × 627 × 242 mm |
| Weight | 46.5 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
