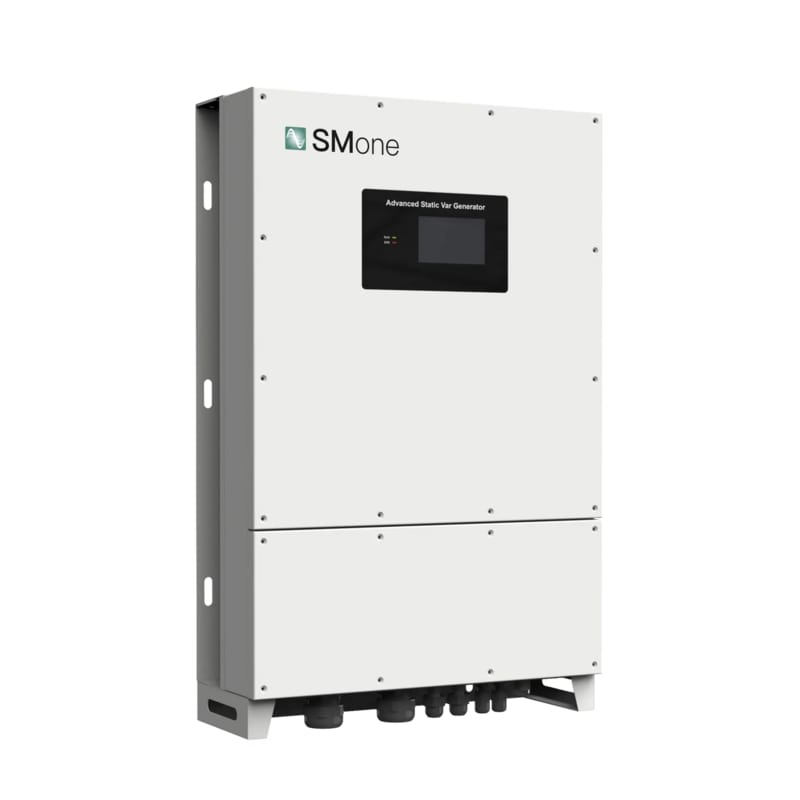

SMone SM-ASVG-15-0.4-4L-IP ASVG Active Compensator 15 kVAr 400 V IP66 with Integrated CTs
SMone SM-ASVG-15-0.4-4L-IP ASVG Active Compensator 15 kVAr 400 V IP66 with Integrated CTs
Regular price
€3,432.78
Regular price
Sale price
€3,432.78
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysPower qualityAC sideSMone
SMone SM-ASVG-15-0.4-4L-IP ASVG Active Compensator 15 kVAr 400 V IP66 with Integrated CTs
The SMone SM-ASVG-15-0.4-4L-IP is the version in a sealed IP66 enclosure of the 15 kVAr static active reactive power compensator for 400 V three-phase networks, rated 15 kVAr. Thanks to the high protection rating and to passive cooling (no fans), it can also be installed outdoors or in dusty and damp environments, where IP20 cabinets cannot be used.
It dynamically compensates inductive and capacitive reactive power, filters harmonics from the 2nd to the 25th order and rebalances the asymmetry between the phases, with a response time of less than 10 ms. The current transformers are integrated into the device, simplifying the wiring. Mounting is on the wall with a 3L+N+PE connection; management is carried out from the built-in 4.3" touchscreen display or from an external 7" panel, with RS485 Modbus communication.
Key features
IP66 enclosure for outdoor useThe sealed housing protects the electronics from dust and water jets, allowing installation in the open without additional cabinets.
Passive coolingNo fan in operation: reduced maintenance, no filters to clean and silent running.
15 kVAr dynamicContinuous compensation of inductive and capacitive reactive power with a compensation factor above 95 %.
Harmonic filter 2nd–25th orderIt reduces the current harmonic distortion generated by photovoltaic inverters and non-linear loads.
Integrated CTsThe current transformers are already built in: fewer components to buy and simpler wiring.
Up to 8 units in parallelSeveral compensators can work together to cover higher reactive powers, keeping a single control logic.
Technical specifications
| Feature | Value |
|---|---|
| Product code | 106081 |
| Model | SM-ASVG-15-0.4-4L-IP |
| Type | Active static reactive power compensator (ASVG) with harmonic filter |
| Reactive power | 15 kVAr (inductive and capacitive) |
| Rated voltage | 400 V AC (range 304–456 V) |
| Phases | Three-phase 3L + N + PE |
| Frequency | 50 Hz (range 45–63 Hz) |
| Compensation type | Dynamic, per individual phase, with unbalance correction |
| Harmonic filtering | From the 2nd to the 25th harmonic |
| Response time | < 10 ms |
| Efficiency | > 97 % |
| Compensation factor | > 95 % |
| Current transformers (CT) | Integrated in the device |
| Cooling | Passive, fanless |
| Communication | RS485 Modbus, integrated 4.3" touch display (optional external 7" panel) |
| Parallel operation | Up to 8 units |
| Mounting | Wall-mounted |
| Protection rating | IP66 |
| Operating temperature | Da -20 a +50 °C |
| Standards | EN 50178:2018, EN IEC 61000-6-2:2009, EN IEC 61000-6-4:2019 |
| Dimensions | 490 × 777 × 184 mm |
| Weight | 44.5 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
