Redarc SMFP1200 200W portable folding solar panel, monocrystalline, Anderson SB50 & carry bag

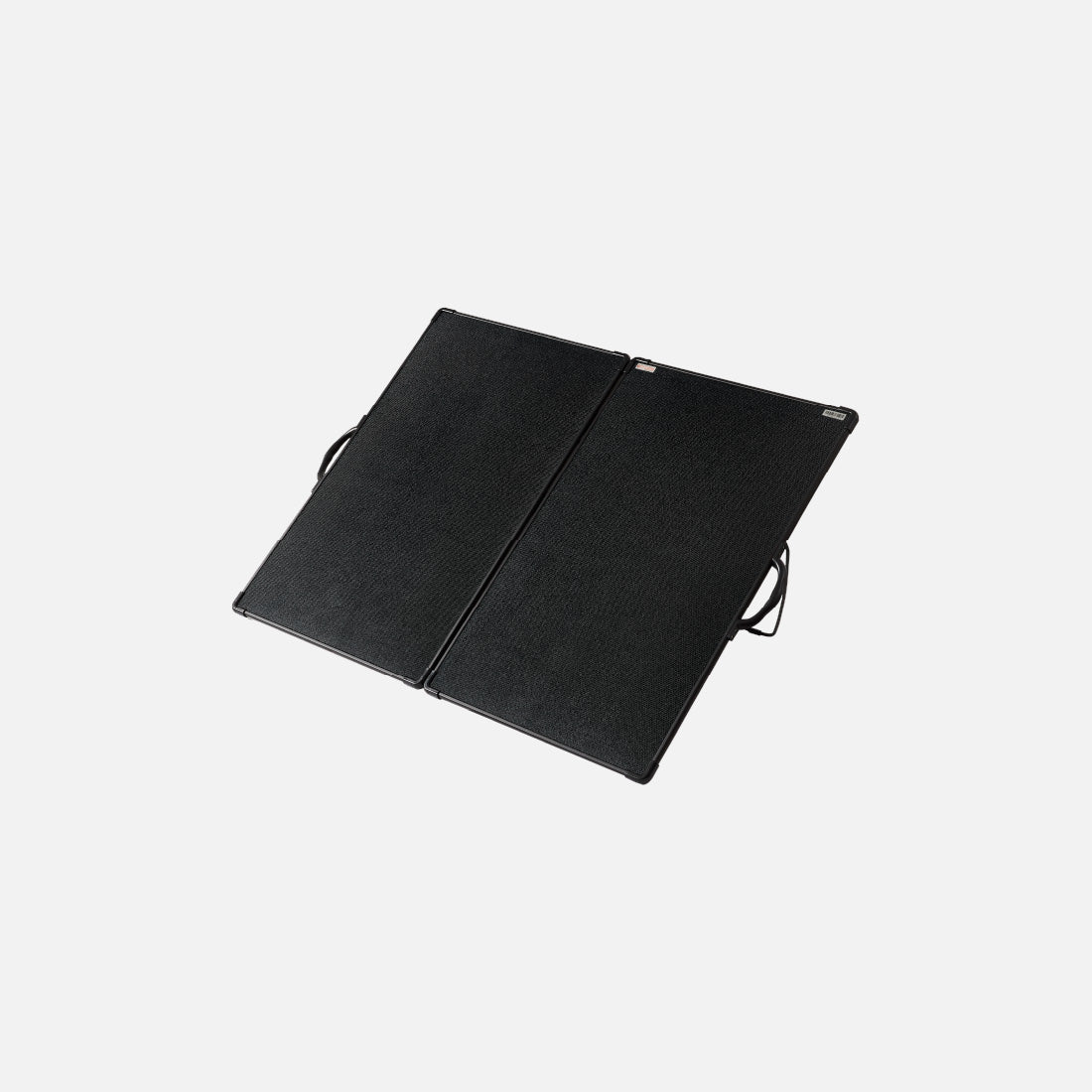

The Redarc SMFP1200 is a portable folding solar panel rated at 200 W, with high-efficiency monocrystalline cells. Despite the 'Rigid' name on the distributor price list, it is not a roof-mount panel: it opens like a book, stands on the ground on its adjustable legs and can be angled towards the sun while your vehicle stays in the shade.
The ultra-light, glass-free construction is protected by an ETFE coating that withstands high temperatures, maximises the light reaching the cells and is more flexible than traditional coatings. The frame is anodised aluminium.
It comes fitted with a genuine Anderson SB50 connector and is supplied with a protective carry bag. Solar regulator and cables (e.g. Redarc SRC0016, SRC0018, SRC0019) are sold separately.
Key features
Folding and portableFolded, it measures just 590 × 900 × 50 mm: easy to stow in a motorhome, 4x4 or storage locker.
Adjustable legsTilt the panel towards the sun for maximum output.
ETFE coatingLightweight, heat-resistant and more flexible than glass, with excellent light transmission.
Anderson SB50 connectorPlug-and-play connection to Redarc cables and regulators, with no screw terminals.
Carry bag includedProtects the panel during travel and storage.
Monocrystalline cellsHigh efficiency even where space is tight; operates from –40 °C to +85 °C.
Technical specifications
| Feature | Value |
|---|---|
| REDARC part number | SMFP1200 |
| Rated power (Pmax) | 200 W |
| Cell type | Monocrystalline |
| Open-circuit voltage (Voc) | 21.45 V |
| Maximum power voltage (Vmp) | 18.2 V |
| Short-circuit current (Isc) | 11.65 A |
| Maximum power current (Imp) | 11.0 A |
| Coating | ETFE (glass-free) |
| Frame / material | Anodised aluminium |
| Connector | Anderson SB50 |
| Cable length | 300 mm |
| Unfolded dimensions (H × W × D) | 1180 × 900 × 25 mm |
| Folded dimensions (H × W × D) | 590 × 900 × 50 mm |
| Weight | 6.2 kg |
| Operating temperature | –40 °C to +85 °C |
| Contents | Folding solar panel, carry bag (regulator and cables not included) |
| Warranty | 2 years |
