Redarc SMRP1060B 60W 12V monocrystalline fixed solar panel, black frame, MC4 connectors

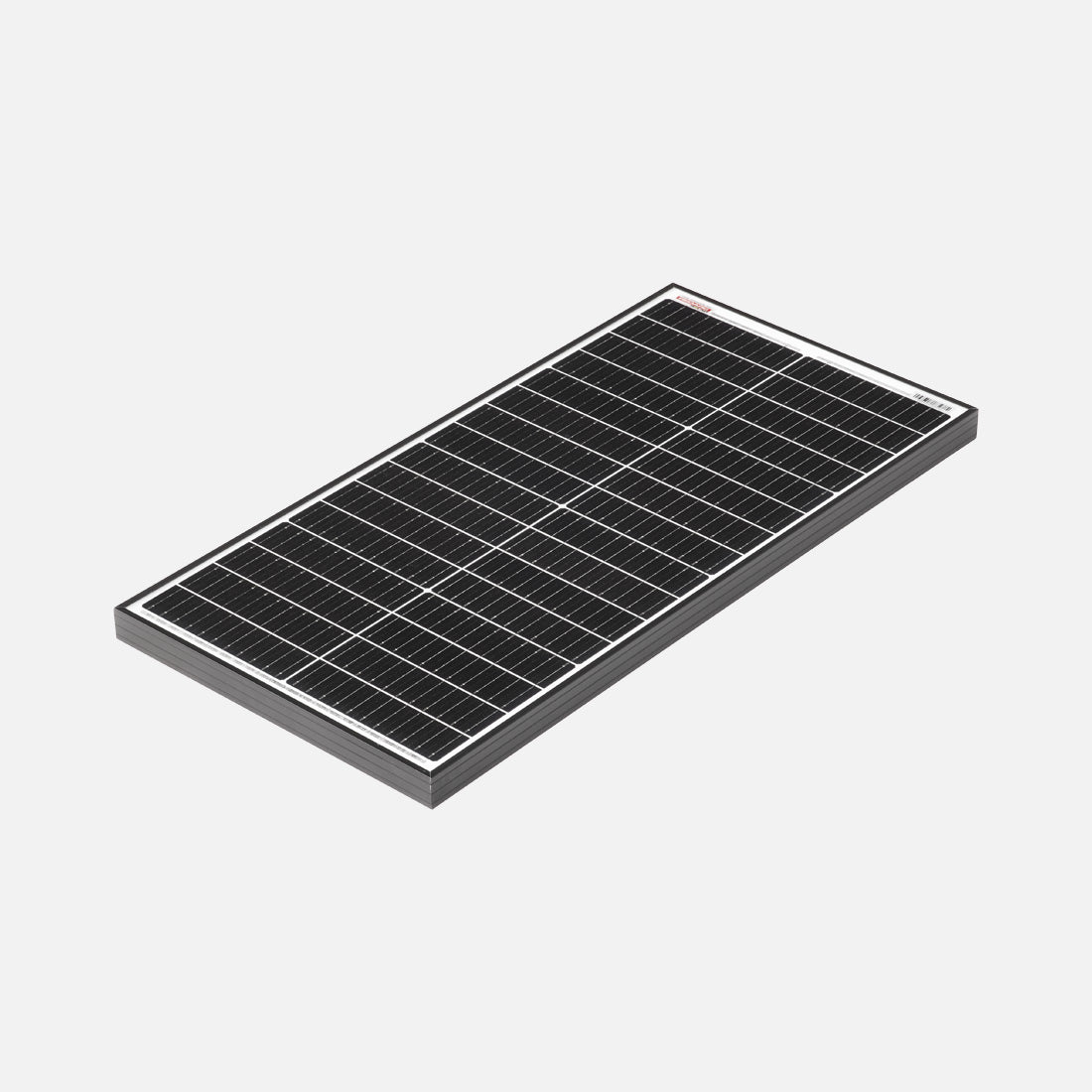

The Redarc SMRP1060B is a 60 W monocrystalline rigid solar panel designed for permanent roof mounting on motorhomes, caravans, camper trailers, 4x4s and boats: it keeps your auxiliary batteries topped up all day long, even when the vehicle is parked.
High-efficiency monocrystalline cells, tempered glass and a black-finish anodised aluminium frame stand up to vibration, harsh weather and off-road use. MC4 connectors make it compatible with solar regulators, BCDC DC-DC battery chargers with solar input and the Redarc Manager30.
The panel is supplied without a regulator: pair it with a solar charge controller (or a BCDC/Manager with built-in MPPT). Redarc SPMB mounting brackets are available for fitting the panel to roof bars.
Key features
Monocrystalline cellsHigh output per surface area, ideal when roof space is limited.
Tempered glassTough surface that resists light hail, branches and the elements.
Black anodised aluminium frameRigid and corrosion-resistant, suited to permanent installation on vehicles and boats. The black finish blends in with dark roofs and roof racks.
MC4 connectorsQuick, secure connection to Redarc SRC solar cables and to regulators/BCDC chargers.
Wide temperature rangeOperates from –40 °C to +85 °C, from alpine cold to summer heat.
Designed in AustraliaDeveloped by Redarc for tough off-road and outdoor use.
Technical specifications
| Feature | Value |
|---|---|
| REDARC part number | SMRP1060B |
| Rated power (Pmax) | 60 W |
| Cell type | Monocrystalline |
| Open-circuit voltage (Voc) | 21.84 V |
| Maximum power voltage (Vmp) | 18.2 V |
| Short-circuit current (Isc) | 3.46 A |
| Maximum power current (Imp) | 3.3 A |
| Connector type | MC4 |
| Cable length | 900 mm |
| Frame / material | Black anodised aluminium |
| Frame colour | Black |
| Surface | Tempered glass |
| Dimensions (H × W × D) | 805 × 395 × 35 mm |
| Weight | 3.7 kg |
| Operating temperature | –40 °C to +85 °C |
| Warranty | 2 years |
