JA Solar

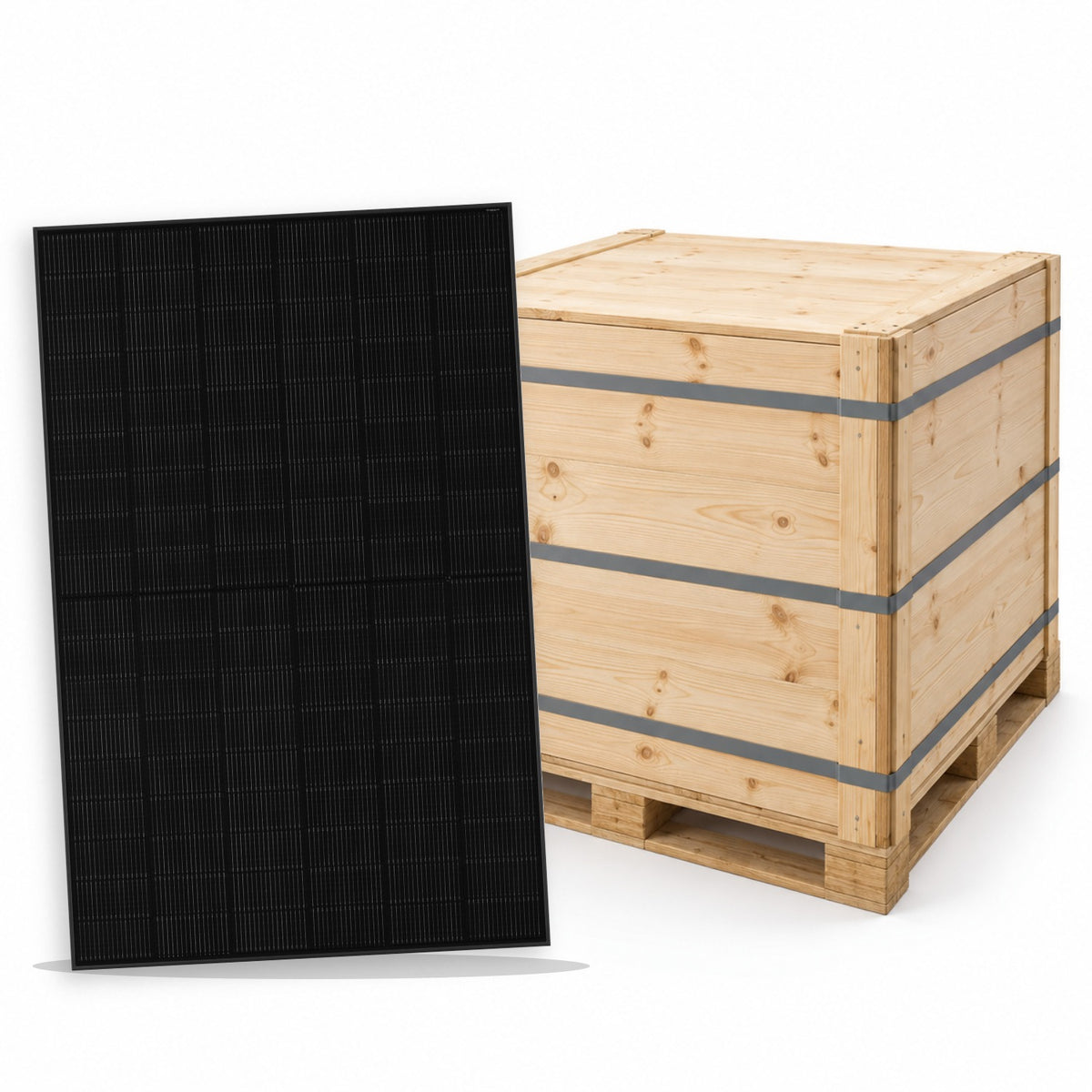

Pallet of 36 JA Solar DeepBlue 4.0 Pro 500W bifacial solar modules 18kWp
Pallet of 36 JA Solar DeepBlue 4.0 Pro 500W bifacial solar modules 18kWp
Regular price
€3,429.97
Regular price
Sale price
€3,429.97
Unit price
per
See the price with VAT
Price including VAT by delivery country
- Italy22% €4,184.56
- Germany19% €4,081.66
- France20% €4,115.96
- Austria20% €4,115.96
- Belgium21% €4,150.26
- Bulgaria20% €4,115.96
- Croatia25% €4,287.46
- Cyprus19% €4,081.66
- Czech Republic21% €4,150.26
- Denmark25% €4,287.46
- Estonia24% €4,253.16
- Finland25.5% €4,304.61
- Greece24% €4,253.16
- Hungary27% €4,356.06
- Ireland23% €4,218.86
- Latvia21% €4,150.26
- Lithuania21% €4,150.26
- Luxembourg17% €4,013.06
- Malta18% €4,047.36
- Netherlands21% €4,150.26
- Poland23% €4,218.86
- Portugal23% €4,218.86
- Romania21% €4,150.26
- Slovakia23% €4,218.86
- Slovenia22% €4,184.56
- Spain21% €4,150.26
- Sweden25% €4,287.46
Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
252 units in stock at our supplier
SOLAR PANEL SHIPPING
- Italy: 120 €
- European Union: 400 €
Dedicated rate: modules, pallets and kits with panels ship on a pallet with a specialised carrier. Free shipping over €150 does not apply here. The exact amount is confirmed at checkout; for non-EU countries please ask for a quote.
Delivery in 10-20 days12-year warrantyJA Solar
Shipping costs
Italy: €120. European Union: €350.
Italy: €120. European Union: €350.
Full pallet of 36 modules. Flat shipping: €120.
Pallet of 36 JA Solar DeepBlue 4.0 Pro 500W bifacial solar modules 18kWp
Full pallet of 36 JA Solar modules rated 500W, for a total of 18kWp. Buying the complete pallet costs less than buying single modules and is the usual choice for a complete residential or commercial system.
The JA Solar JAM60D41-500/LB in its full black version is a 500W solar module from the DeepBlue 4.0 Pro series, built with 120 N-type TOPCon half-cells in a bifacial dual glass layout. The glass-glass construction does away with the polymer backsheet and gives the laminate markedly better mechanical strength and dimensional stability, with certified loads of up to 5400 Pa on the front and 2400 Pa on the rear. A power temperature coefficient of -0.29 %/°C and N-type cells, free of the light-induced degradation typical of P-type silicon, keep output high through the middle of a summer day, when cell temperature climbs well past the 45 °C NOCT figure.
With a surface area of roughly 2.21 m² and an efficiency of 22.6 %, the panel sits in the high power density class and suits both premium residential systems — the full black finish with black frame makes it a natural fit for visible roof planes and clay tile roofs — and commercial flat roof installations, where the bifacial gain adds energy harvested from light reflected off the mounting surface. N-type cells also respond better in low light conditions, at dawn, at dusk and on overcast days, extending the productive hours of the day. The linear performance warranty runs for 30 years.
Key features
N-type TOPCon cellsThe 120 N-type half-cells eliminate the LID degradation typical of P-type silicon and keep annual power loss low across the full service life of the module.
Bifacial dual glassThe backsheet-free glass-glass structure shields the cells from moisture and abrasion and lets the rear face harvest reflected light as well.
Full black aestheticsA black frame and an even, uniform finish make this module the right choice for residential roofs where the visual result is part of the decision.
Excellent temperature behaviourAt -0.29 %/°C the module loses less energy than PERC technologies once the cell works well beyond the 25 °C of STC.
Certified mechanical strengthFront load up to 5400 Pa and rear load up to 2400 Pa for use in regions with heavy snow load and strong wind gusts.
30-year performance warrantyThree decades of linear output warranty, backed by a product warranty covering materials and workmanship.
Technical specifications
| Feature | Value |
|---|---|
| Product code | JAM60D41-500/LB_FB |
| Modules per pallet | 36 pcs |
| Total pallet output | 18kWp |
| Manufacturer | JA Solar |
| Series | DeepBlue 4.0 Pro – JAM60D41/LB |
| Rated power (STC) | 500Wp |
| Module efficiency | 22.6 % |
| Cell technology | N-Type TOPCon (Bycium+) |
| Cells | 120 semicelle (60 celle) N-type TOPCon |
| Voltage at Pmax (Vmp) | 36.91V |
| Current at Pmax (Imp) | 13.55A |
| Open-circuit voltage (Voc) | 43.85V |
| Short-circuit current (Isc) | 14.42A |
| Temperature coefficient of Pmax | -0.29 %/°C |
| NMOT | 45 °C |
| Bifacial | Yes |
| Glass | Doppio vetro temperato da 2.0 mm, anteriore con rivestimento antiriflesso |
| Frame | Full black |
| Dimensions (L × W × D) | 1953 × 1134 × 30 mm |
| Weight | 27.3 kg |
| Connectors | MC4 compatible, 4 mm² cable |
| Maximum system voltage | 1500V DC |
| Maximum series fuse | 30A |
| Protection rating | IP68 |
| Snow load | 5400 Pa |
| Wind load | 2400 Pa |
| Product warranty | 12 years |
| Performance warranty | 30 years |
Documentation
PDFDatasheet DeepBlue 4.0 ProOfficial manufacturer documentSeries or parallel wiring must stay within the voltage and current limits of the inverter MPPTs and follow the electrical design of the system.
