FuturaSun

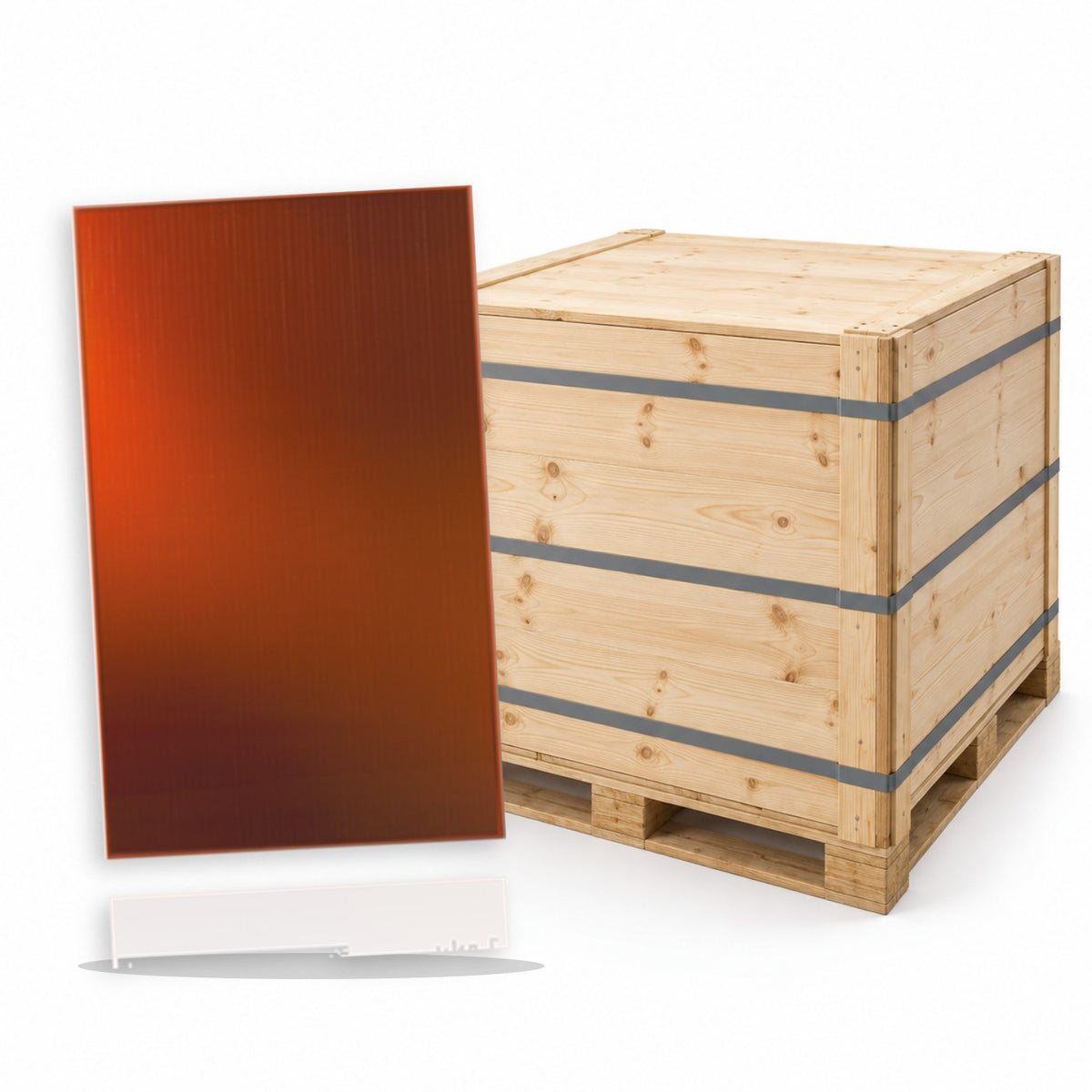

Pallet of 31 FuturaSun Silk Pro 250 W monofacial orange RAL 8023 solar panels, 7.75 kWp
Pallet of 31 FuturaSun Silk Pro 250 W monofacial orange RAL 8023 solar panels, 7.75 kWp
Regular price
€3,620.94
Regular price
Sale price
€3,620.94
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 days15-year warrantyFuturaSun
Shipping costs
Italy: 120 €. European Union: 350 €.
Italy: 120 €. European Union: 350 €.
Full pallet of 31 modules. Flat shipping: €120.
Pallet of 31 FuturaSun Silk Pro 250 W monofacial orange RAL 8023 solar panels, 7.75 kWp
This full pallet of 31 FuturaSun FU250M Silk Pro Orange 250 W modules provides 7.75 kWp in a single shipment. Buying the whole pallet is cheaper than buying the modules one by one: the price per watt drops, there is only one delivery and all the panels come from the same batch, with the same colour shade and matched electrical characteristics. It is the standard solution for a complete residential or commercial system, especially where the colour of the roof is not negotiable.
The Silk Pro Orange is a monofacial module with 120 monocrystalline PERC multi-busbar half-cells and a 3.2 mm orange tempered glass in RAL 8023, with an anodised aluminium frame in the same colour. It is designed to blend into terracotta tile roofs and into heritage-protected settings where a black panel would not be approved. The coloured glass filters part of the radiation, so the output is 250 W for an efficiency of 13.72%: it is chosen for architectural integration rather than for maximum power density.
The module measures 1755 × 1038 × 35 mm, weighs 19.7 kg and withstands 5400 Pa of snow and 2400 Pa of wind load; the junction box is IP68 with three bypass diodes and the temperature coefficient is -0.35%/°C. The product warranty is 15 years and the performance warranty 25 years, with 87% of rated power in year 25. Ideal for historic centres, villas and renovations.
Key features
Orange glass, RAL 80233.2 mm coloured tempered glass with anti-reflective coating: the panel blends visually into terracotta tile roofs.
Colour-matched frameAnodised aluminium frame in the same orange as the glass, with drainage holes: no contrast on the roof.
Approvable in protected areasDesigned for historic centres and heritage-protected areas where black modules are not authorised.
PERC multi-busbar cells120 monocrystalline PERC half-cells with 9 busbars: lower resistive losses and better tolerance to partial shading.
IP68 junction boxThree bypass diodes and IEC 62790 certification, with 4 mm² cable and MC4 connectors.
Sturdy and light19.7 kg for a 5400 Pa snow load and 2400 Pa wind load, with low-iron tempered glass.
Technical specifications
| Feature | Value |
|---|---|
| Product code | FU250M |
| Modules per pallet | 31 pieces |
| Total pallet output | 7.75 kWp |
| Manufacturer | FuturaSun |
| Series | Silk Pro Orange |
| Rated power (STC) | 250 W |
| Module efficiency | 13.72% |
| Cell technology | Monocrystalline PERC multi-busbar (9 busbars) |
| Number of cells | 120 (half-cells, 166 × 83 mm) |
| Voltage at maximum power (Vmp) | 34.61 V |
| Current at maximum power (Imp) | 7.23 A |
| Open circuit voltage (Voc) | 40.77 V |
| Short circuit current (Isc) | 7.63 A |
| Temperature coefficient of Pmax | -0.35 %/°C |
| Temperature coefficient of Voc | -0.28 %/°C |
| NMOT (NOCT) | 45 °C |
| Power at NMOT | 189 W |
| Bifacial | No (monofacial) |
| Glass | Orange tempered glass RAL 8023, 3.2 mm, low-iron, anti-reflective |
| Frame | Anodised aluminium in orange RAL 8023, 35 mm, with drainage holes |
| Dimensions | 1755 × 1038 × 35 mm |
| Weight | 19.7 kg |
| Connectors | MC4, 4 mm² cable, 1200 mm |
| Maximum system voltage | 1000 V DC (1500 V on request) |
| Maximum reverse current | 20 A |
| Protection rating (junction box) | IP68, 3 bypass diodes |
| Snow load | 5400 Pa |
| Wind load | 2400 Pa |
| Operating temperature | -40 °C to +85 °C |
| Product warranty | 15 years |
| Performance warranty | 25 years (87% in year 25) |
Documentation
PDFScheda tecnica FuturaSun Silk Pro Orange FU240-255M (PDF)Official manufacturer documentPDFFuturaSun Silk Pro Orange Datenblatt (PDF)Official manufacturer documentSeries or parallel wiring must respect the voltage and current limits of the inverter MPPTs and the electrical design of the system.
