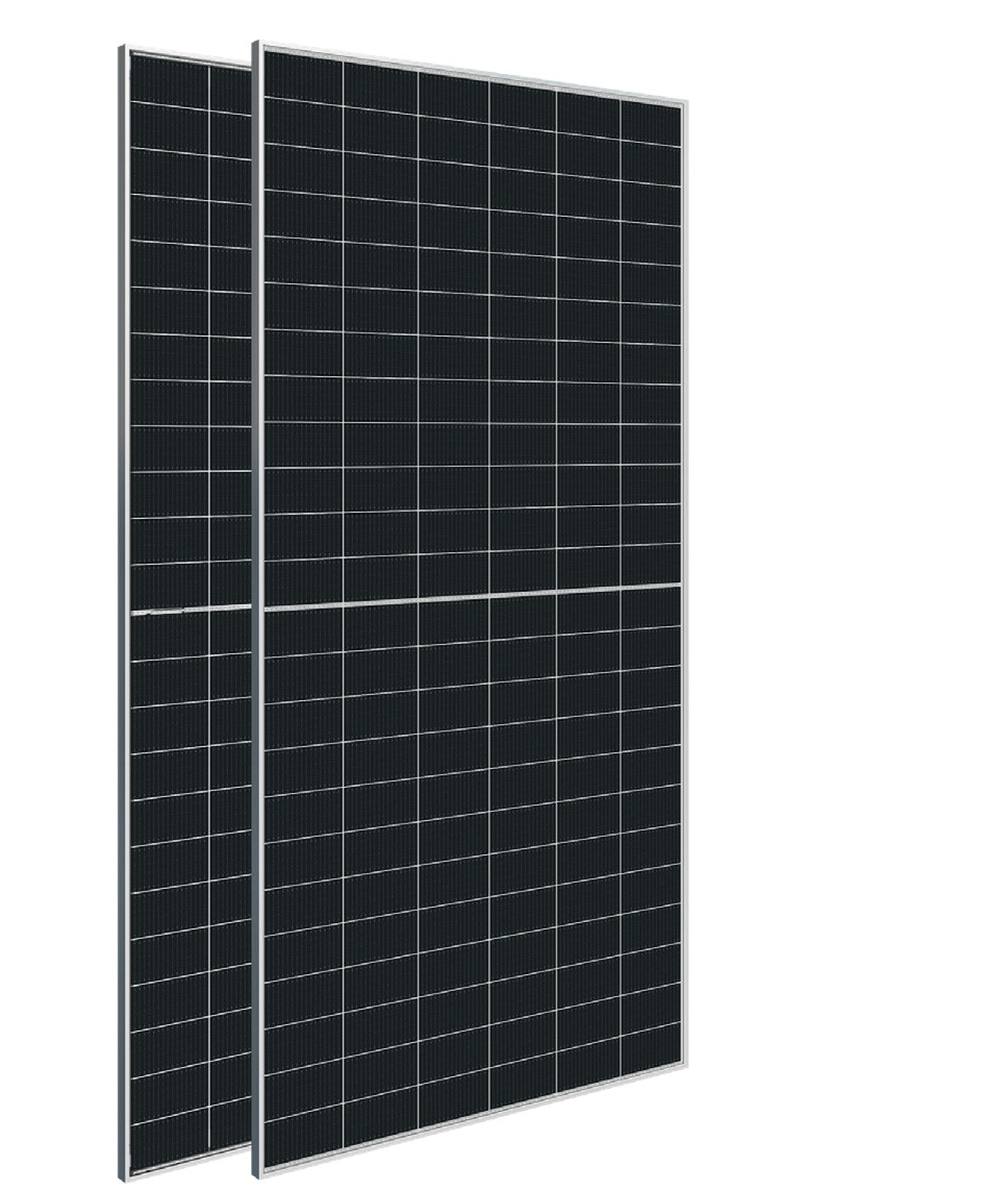

Pallet of 36 Astronergy ASTRO N5 CHSM72N(DG)/F-BH 590 W monofacial solar modules — 21.24 kWp

Pallet of 36 Astronergy ASTRO N5 CHSM72N(DG)/F-BH 590 W monofacial solar modules — 21.24 kWp

€4,075.59
€4,075.59
Sale Sold out
Tax included.

AVAILABILITY

15 units in stock at our supplier

SOLAR PANEL SHIPPING

  • Italy: 120 €
  • European Union: 350 €

Dedicated rate: modules, pallets and kits with panels ship on a pallet with a specialised carrier. Free shipping over €150 does not apply here. The exact amount is confirmed at checkout; for non-EU countries please ask for a quote.

Read the full shipping conditions

Aliquota IVA
View full details
Prices shown include 22% Italian VAT. The reduced 10% rate applies only to goods destined for solar and storage systems, against a customer declaration. Ordering from outside Italy: pick the 22% variant, or for 0% VAT place the order by bank transfer without paying and we will send you a proforma invoice.
How VAT works ›
Shipping cost
Flat €120 shipping within Italy per pallet, the same rate as all our rigid modules and module kits. Delivery in 10-20 days. The unloading point must be reachable by truck and have a forklift or pallet truck available.
Delivery in 10-20 days15 pallets available21.24 kWpMonofacial15 + 30 year warrantyAstronergy

Pallet of 36 Astronergy ASTRO N5 CHSM72N(DG)/F-BH 590 W monofacial solar modules — 21.24 kWp

A full pallet of 36 Astronergy ASTRO N5 CHSM72N(DG)/F-BH modules rated 590 W each, 21.24 kWp in total. It ships as the manufacturer packed it — strapped and sealed at the factory — so you buy once, unload once, and the price per watt comes in below the single-module price.

Each module converts 22.8 % of the incident light, and one pallet carries 21.24 kWp across 36 pieces. We have 15 full pallets on hand, which means a residential or small commercial array can be built from a single production batch — worth having, because modules from one batch share the same power tolerance.

That works out to roughly €0.1744 per Wp excluding VAT. Delivery needs a site a truck can reach and a forklift or pallet truck on hand: the pallet weighs 1156 kg, so it cannot be moved by hand.

Why it is worth it

Factory packagingStrapped and sealed by the manufacturer, 36 modules from one production batch and therefore one power tolerance.
22.8 % efficiency590 W per module: more power per square metre, which matters when the usable area is limited.
MonofacialPredictable output and simpler system sizing: no variable tied to ground reflectance or mounting height.
n-type monocristallino TOPCon cellLow annual degradation and a contained temperature coefficient: more energy harvested over the years.
15 + 30 year warranty15 years on the product and 30 years of linear warranty on power output.
Delivery in 10-20 daysThe goods are already in Europe: no production lead time and no customs wait.

Technical data

Specification Value
What you get One complete pallet
Modules included 36 pcs
Total output 21.24 kWp
Delivery 10-20 days
Product code CHSM72N(DG)/F-BH
Manufacturer Astronergy
Series ASTRO N5
Rated power (STC) 590 Wp
Module efficiency 22.8 %
Cell technology n-type monocristallino TOPCon
Cells 144
Voltage at Pmax (Vmp) 43.45 V
Current at Pmax (Imp) 13.58 A
Open-circuit voltage (Voc) 51.7 V
Short-circuit current (Isc) 14.45 A
Temperature coefficient of Pmax -0.29 %/°C
Bifacial No
Glass 2.0 + 2.0 mm
Frame silver frame
Dimensions (L × W × D) 2278 × 1134 × 30 mm
Weight 32.1 kg per module
Maximum system voltage 1500 V DC
Maximum series fuse rating 30 A
Product warranty 15 years
Performance warranty 30 years (linear)

Documentation

PDFManufacturer data sheet ASTRO N5Official manufacturer document

Series and parallel wiring must stay within the voltage and current limits of the inverter MPPTs and follow the electrical design of the system.
