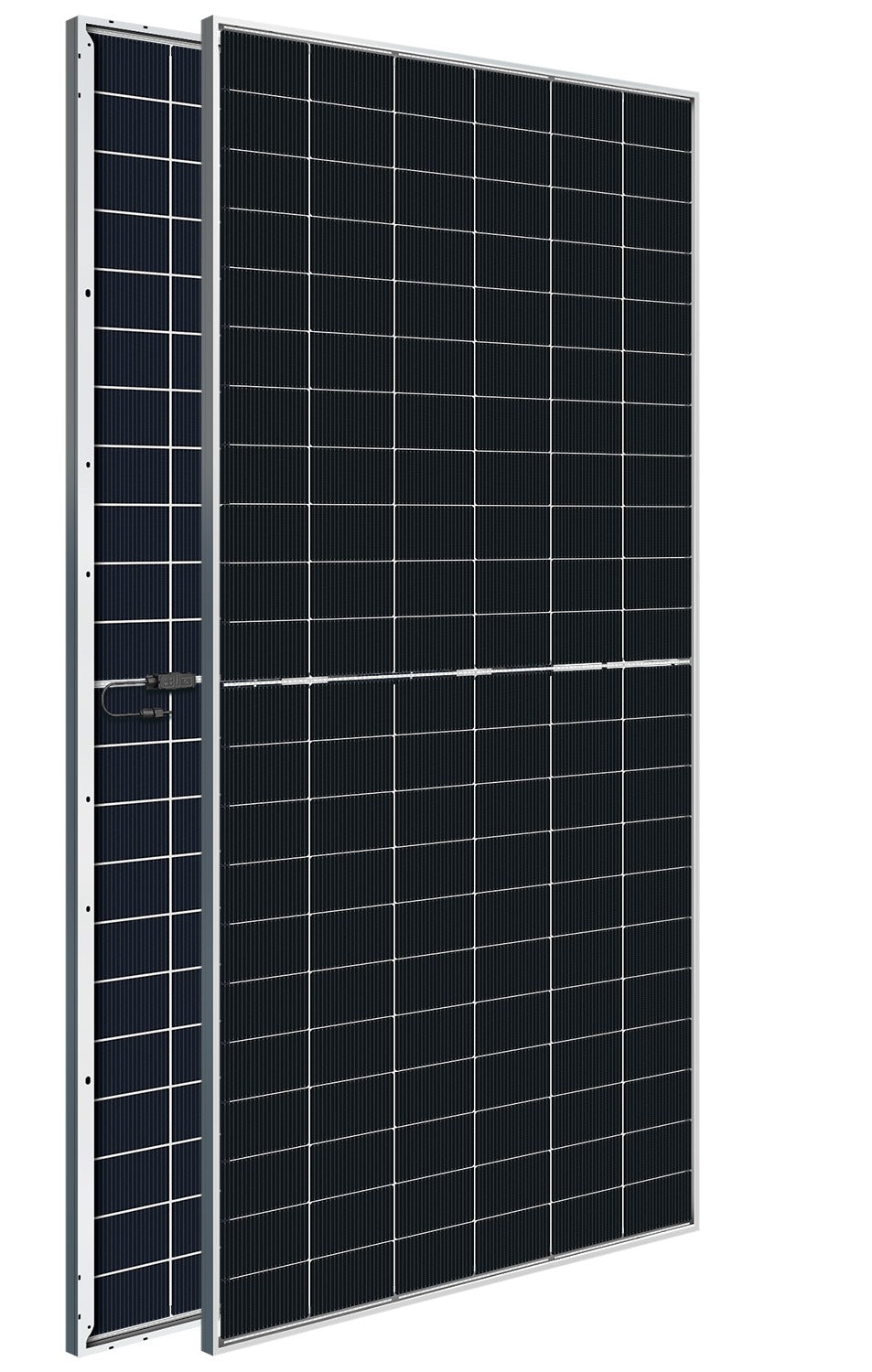

Pallet of 36 Astronergy ASTRO N7 CHSM66RN(DG)/F-BH 625 W bifacial solar modules — 22.5 kWp
Pallet of 36 Astronergy ASTRO N7 CHSM66RN(DG)/F-BH 625 W bifacial solar modules — 22.5 kWp
Regular price
€4,298.75
Regular price
Sale price
€4,298.75
Unit price
per
Tax included.
AVAILABILITY
9 units in stock at our supplier
SOLAR PANEL SHIPPING
- Italy: 120 €
- European Union: 350 €
Dedicated rate: modules, pallets and kits with panels ship on a pallet with a specialised carrier. Free shipping over €150 does not apply here. The exact amount is confirmed at checkout; for non-EU countries please ask for a quote.
Couldn't load pickup availability
Prices shown include 22% Italian VAT. The reduced 10% rate applies only to goods destined for solar and storage systems, against a customer declaration. Ordering from outside Italy: pick the 22% variant, or for 0% VAT place the order by bank transfer without paying and we will send you a proforma invoice.
How VAT works ›
How VAT works ›
Shipping cost
Flat €120 shipping within Italy per pallet, the same rate as all our rigid modules and module kits. Delivery in 10-20 days. The unloading point must be reachable by truck and have a forklift or pallet truck available.
Flat €120 shipping within Italy per pallet, the same rate as all our rigid modules and module kits. Delivery in 10-20 days. The unloading point must be reachable by truck and have a forklift or pallet truck available.
Delivery in 10-20 days9 pallets available22.5 kWpBifacial15 + 30 year warrantyAstronergy
Pallet of 36 Astronergy ASTRO N7 CHSM66RN(DG)/F-BH 625 W bifacial solar modules — 22.5 kWp
A full pallet of 36 Astronergy ASTRO N7 CHSM66RN(DG)/F-BH modules rated 625 W each, 22.5 kWp in total. It ships as the manufacturer packed it — strapped and sealed at the factory — so you buy once, unload once, and the price per watt comes in below the single-module price.
Each module converts 23.1 % of the incident light, and one pallet carries 22.5 kWp across 36 pieces. We have 9 full pallets on hand, which means a residential or small commercial array can be built from a single production batch — worth having, because modules from one batch share the same power tolerance.
That works out to roughly €0.1737 per Wp excluding VAT. Delivery needs a site a truck can reach and a forklift or pallet truck on hand: the pallet weighs 1206 kg, so it cannot be moved by hand.
Why it is worth it
Factory packagingStrapped and sealed by the manufacturer, 36 modules from one production batch and therefore one power tolerance.
23.1 % efficiency625 W per module: more power per square metre, which matters when the usable area is limited.
Bifacial dual glassBifaciality factor of 80 %: over a light-coloured surface or on a raised structure the rear side adds yield without taking up more room.
n-type TOPCon 5.0 cellLow annual degradation and a contained temperature coefficient: more energy harvested over the years.
15 + 30 year warranty15 years on the product and 30 years of linear warranty on power output.
Delivery in 10-20 daysThe goods are already in Europe: no production lead time and no customs wait.
Technical data
| Specification | Value |
|---|---|
| What you get | One complete pallet |
| Modules included | 36 pcs |
| Total output | 22.5 kWp |
| Delivery | 10-20 days |
| Product code | CHSM66RN(DG)/F-BH |
| Manufacturer | Astronergy |
| Series | ASTRO N7 |
| Rated power (STC) | 625 Wp |
| Module efficiency | 23.1 % |
| Cell technology | n-type TOPCon 5.0 |
| Cells | 132 |
| Voltage at Pmax (Vmp) | 41.69 V |
| Current at Pmax (Imp) | 14.99 A |
| Open-circuit voltage (Voc) | 49.19 V |
| Short-circuit current (Isc) | 16.19 A |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Bifacial | Yes |
| Bifaciality factor | 80 ± 5 % |
| Glass | 2.0 + 2.0 mm |
| Frame | black frame |
| Dimensions (L × W × D) | 2382 × 1134 × 30 mm |
| Weight | 33.5 kg per module |
| Maximum system voltage | 1500 V DC |
| Maximum series fuse rating | 35 A |
| Product warranty | 15 years |
| Performance warranty | 30 years (linear) |
Documentation
PDFManufacturer data sheet ASTRO N7Official manufacturer documentSeries and parallel wiring must stay within the voltage and current limits of the inverter MPPTs and follow the electrical design of the system.
