Horay

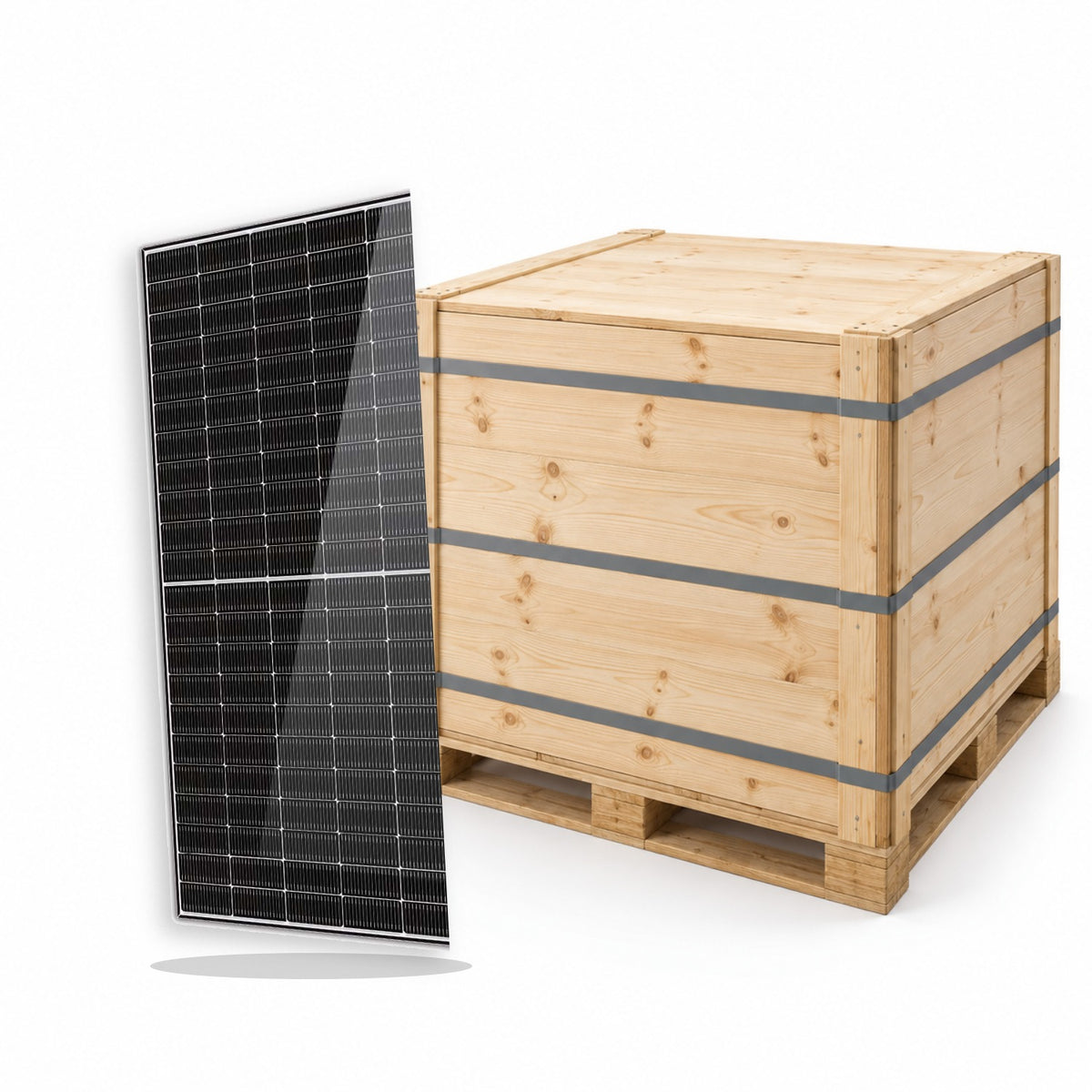

Pallet of 36 Horay 630W N-Type TOPCon bifacial dual glass solar panels, 22.68kWp
Pallet of 36 Horay 630W N-Type TOPCon bifacial dual glass solar panels, 22.68kWp
Regular price
€4,401.55
Regular price
Sale price
€4,401.55
Unit price
per
See the price with VAT
Price including VAT by delivery country
- Italy22% €5,369.89
- Germany19% €5,237.84
- France20% €5,281.86
- Austria20% €5,281.86
- Belgium21% €5,325.87
- Bulgaria20% €5,281.86
- Croatia25% €5,501.93
- Cyprus19% €5,237.84
- Czech Republic21% €5,325.87
- Denmark25% €5,501.93
- Estonia24% €5,457.92
- Finland25.5% €5,523.94
- Greece24% €5,457.92
- Hungary27% €5,589.96
- Ireland23% €5,413.90
- Latvia21% €5,325.87
- Lithuania21% €5,325.87
- Luxembourg17% €5,149.81
- Malta18% €5,193.82
- Netherlands21% €5,325.87
- Poland23% €5,413.90
- Portugal23% €5,413.90
- Romania21% €5,325.87
- Slovakia23% €5,413.90
- Slovenia22% €5,369.89
- Spain21% €5,325.87
- Sweden25% €5,501.93
Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
SOLAR PANEL SHIPPING
- Italy: 120 €
- European Union: 400 €
Dedicated rate: modules, pallets and kits with panels ship on a pallet with a specialised carrier. Free shipping over €150 does not apply here. The exact amount is confirmed at checkout; for non-EU countries please ask for a quote.
Delivery in 10-20 days15-year warrantyHoray
Shipping costs
Italy: 120 €. European Union: 350 €.
Italy: 120 €. European Union: 350 €.
Full pallet of 36 modules. Flat shipping: €120.
Pallet of 36 Horay 630W N-Type TOPCon bifacial dual glass solar panels, 22.68kWp
This is a complete pallet of 36 Horay HS630TC-MHC-D 630W photovoltaic modules, for a total output of 22.68kWp. A full pallet costs far less than the same modules bought individually and covers, in a single delivery, a complete commercial system or a large residential one: all the modules come from the same batch, with matched electrical parameters and no mismatch losses along the string.
This is a large-format module, 2382 × 1134 mm, built with 132 half-cut N-type TOPCon monocrystalline cells using SMBB multi-busbar: the many busbars cut resistive losses and make the module less sensitive to microcracks. The structure is glass-glass with dual 2.0 mm heat-strengthened glass and an anti-reflective coating on both faces, with an anodized aluminium frame. It withstands 5400 Pa of snow load and 2400 Pa of wind load, 25 mm hail at 23 m/s, and carries an IP68 junction box with three diodes.
With 630W per module and 23.3 % efficiency, fewer modules, fewer clamps and fewer strings are needed per installed kWp: it is the ideal format for warehouses, canopies and ground mounts, where installation cost weighs as much as the module. The -0.28 %/°C temperature coefficient and the 71 % ± 5 % bifaciality keep summer production high and recover energy from the rear side. Horay guarantees 15 years on the product and 30 years of linear power output, with at least 87.4 % in year 30.
Key features
630W per moduleFewer modules, fewer clamps and fewer strings per installed kWp: savings on mounting and labour.
N-type TOPCon SMBB cellsMulti-busbars cut resistive losses and the impact of microcracks; 23.3 % efficiency.
Anti-reflective glass-glassDual 2.0 mm heat-strengthened glass with an AR coating on both faces.
71 % bifacialExtra energy from the rear side on flat roofs, light-coloured roofing and ground mounts.
Rugged build5400 Pa snow load, 2400 Pa wind load, 25 mm hail at 23 m/s and an IP68 box with 3 diodes.
30 years on power outputA 15-year product warranty and at least 87.4 % of the rated power in year 30.
Technical specifications
| Feature | Value |
|---|---|
| Product code | HS630TC-MHC-D |
| Modules per pallet | 36 pieces |
| Total pallet output | 22.68kWp |
| Manufacturer | Horay Solar |
| Series | Cosmos HS210R-132TC-D (620-640W) |
| Nominal power (STC) | 630W (± 3 %) |
| Module efficiency | 23.3 % |
| Cell technology | N-type TOPCon monocrystalline with SMBB multi-busbar, half-cut cells |
| Number of cells | 132 (6 × 22) |
| Maximum power voltage (Vmp) | 41.45V |
| Maximum power current (Imp) | 15.20A |
| Open-circuit voltage (Voc) | 49.87V |
| Short-circuit current (Isc) | 16.05A |
| Temperature coefficient of Pmax | -0.28 %/°C |
| Temperature coefficient of Voc | -0.23 %/°C |
| Temperature coefficient of Isc | +0.04 %/°C |
| NOCT (nominal operating cell temperature) | 45 °C ± 2 °C (Pmax 491W) |
| Bifacial | Yes — bifaciality factor 71 % . 5 % |
| Glass | dual 2.0 + 2.0 mm heat-strengthened glass with anti-reflective coating |
| Frame | anodized aluminium alloy |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33.7 kg |
| Connectors | WIN02 (MC4 compatible) |
| Maximum system voltage | 1500V DC |
| Maximum series fuse rating | 25A |
| Protection rating (junction box) | IP68, 3 bypass diodes |
| Snow load (front side) | 5400 Pa |
| Wind load (rear side) | 2400 Pa |
| Hail resistance | 25 mm hail at 23 m/s |
| Operating temperature | -40 °C to +85 °C |
| Product warranty | 15 years |
| Performance warranty | 30 years, linear (≥ 87.4 % in year 30) |
Documentation
PDFDatasheet Horay Cosmos HS210R-132TC-D 620-640W (PDF)Official manufacturer documentPDFDatasheet Horay HS630TC-MHC-D su ENF Solar (PDF)Official manufacturer documentSeries or parallel wiring must stay within the voltage and current limits of the inverter MPPTs and follow the electrical design of the system.
