WeCo 5K3 EVO B00110 Dual Voltage Storage Battery 5.22 kWh LiFePO4 with HV Kit
WeCo 5K3 EVO B00110 Dual Voltage Storage Battery 5.22 kWh LiFePO4 with HV Kit
Regular price
€1,720.40
Regular price
Sale price
€1,720.40
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysStorage battery5.22 kWhWeco
WeCo 5K3 EVO B00110 Dual Voltage Storage Battery 5.22 kWh LiFePO4 with HV Kit

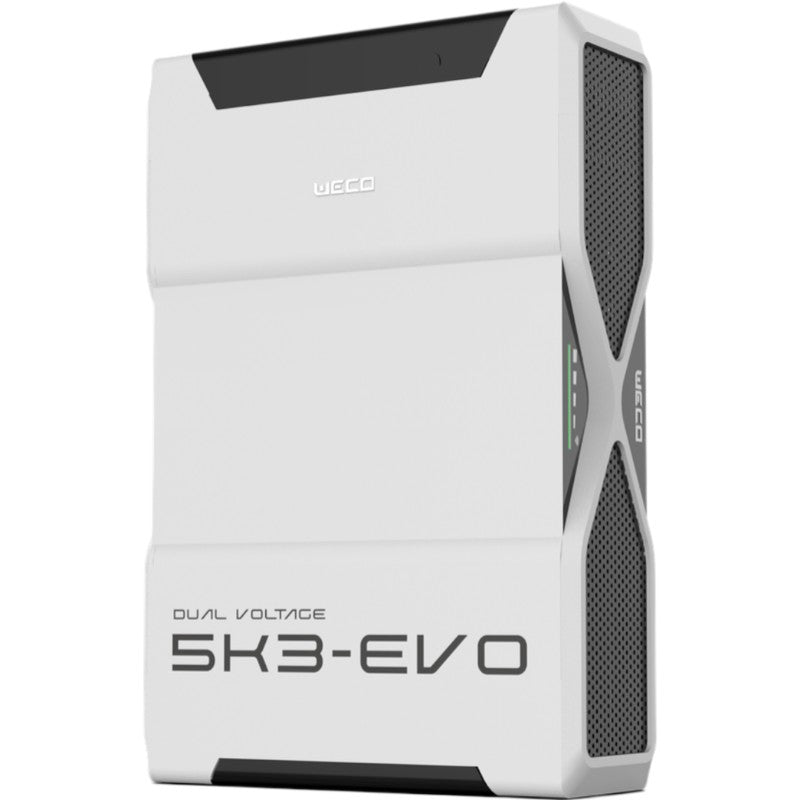

The WeCo 5K3 EVO (code B00110) is a 5.22 kWh lithium iron phosphate battery module with dual voltage: the same module can work at low voltage at 51.2 V, in parallel up to 15 units (105 with the LV HUB), or at high voltage by connecting from 2 to 17 modules in series through the HV BOX, with the possibility of connecting up to 10 clusters in parallel. This version is supplied with the HV kit included.
The module integrates an intelligent BMS with automatic 16-channel balancing, a cell heating system for operation in cold climates and an integrated fire suppression system. The protection rating is IP66 in high voltage configuration (IP64 at low voltage), the depth of discharge reaches up to 98% and the declared life exceeds 7,000 cycles at 25 °C. Communication takes place over CAN and RS232 ports (in addition to RS485 and a Wi-Fi/Bluetooth dongle), with declared compatibility with numerous inverter brands including Deye, GoodWe, Ingeteam, Schneider, SMA, Solis and Studer.
Key features
Dual voltageThe same module works at low voltage at 51.2 V or at high voltage in series through the HV BOX.
Heated cellsIntegrated heating system that allows charging even at low temperatures.
Fire suppressionFire suppression system integrated in the module, with a 16-channel balancing BMS.
Over 7,000 cyclesDeclared cycle life of more than 7,000 cycles at 25 °C with 80% residual capacity.
DoD up to 98%Depth of discharge up to 98%, for 5,220 Wh actually available.
IP66 for outdoorsIP66 protection rating in high voltage configuration (IP64 at low voltage).
Technical specifications
| Feature | Value |
|---|---|
| Product code | B00110 |
| Model | 5K3 EVO (code B00110, version with HV kit included) |
| Chemistry | LiFePO4 |
| Nominal energy | 5,22 kWh |
| Usable energy | 5,220 Wh (up to 98% DoD); 5,115 Wh at the maximum declared DoD |
| Rated voltage | 51.2 Vdc |
| Voltage range | 47.5 - 56.8 Vdc |
| Capacity | 102 Ah (cell capacity 108 Ah) |
| Max charge current | 100 A (peak 102 A) |
| Max discharge current | 100 A (peak 102 A) |
| Charge/discharge power | Not declared in kW; can be derived from 51.2 V × 100 A |
| Depth of discharge (DoD) | Up to 98% (90% recommended) |
| Modules per tower / scalability | Low voltage: max 15 modules in parallel (105 with HUB LV). High voltage: 2 to 17 modules in series with HV BOX, up to 10 clusters in parallel |
| Compatible inverters | Official WeCo integration guides for Deye, GoodWe, Ingeteam, Schneider, SMA, Solis, Studer and others |
| Communication | CAN, RS232, RS485; Wi-Fi/Bluetooth dongle and NOOR app |
| Protection rating | IP66 (high voltage) / IP64 (low voltage) |
| Operating temperature | Discharge -20 °C ... +60 °C; charge -10 °C ... +55 °C; storage 0 °C ... +45 °C |
| Relative humidity | 5% ... 95% |
| Safety | BMS with 16-channel automatic balancing, 150 A/60 Vdc fuse, 150 A/60 Vdc contactor, fire protection system and cell heating |
| Dimensions (W × H × D) | 680 × 440 × 160 mm |
| Weight | 50 kg (55 kg according to the Italian datasheet) |
| Cycle life | Over 7,000 cycles at 25 °C (EOL 80%) |
| Design life | 10 years at 25 °C |
| Warranty | Extendable WeCo warranty; standard duration not declared in the datasheet |
Documentation
PDFDatasheet B00110Official manufacturer documentPlease check compatibility with your inverter and with the other modules in the tower before ordering. Installation must be carried out by qualified personnel in accordance with the applicable standards.
