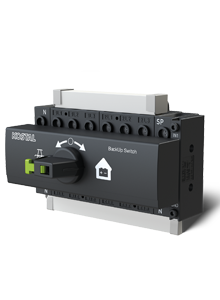

Kostal BackUp Switch G3 Manual Three-Phase Changeover Switch 63A for PLENTICORE G3
Kostal BackUp Switch G3 Manual Three-Phase Changeover Switch 63A for PLENTICORE G3
Regular price
€237.13
Regular price
Sale price
€237.13
Unit price
per
See the price with VAT
Price including VAT by delivery country
- Italy22% €289.29
- Germany19% €282.18
- France20% €284.55
- Austria20% €284.55
- Belgium21% €286.92
- Bulgaria20% €284.55
- Croatia25% €296.41
- Cyprus19% €282.18
- Czech Republic21% €286.92
- Denmark25% €296.41
- Estonia24% €294.04
- Finland25.5% €297.59
- Greece24% €294.04
- Hungary27% €301.15
- Ireland23% €291.66
- Latvia21% €286.92
- Lithuania21% €286.92
- Luxembourg17% €277.44
- Malta18% €279.81
- Netherlands21% €286.92
- Poland23% €291.66
- Portugal23% €291.66
- Romania21% €286.92
- Slovakia23% €291.66
- Slovenia22% €289.29
- Spain21% €286.92
- Sweden25% €296.41
Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
7 units in stock at our supplier
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 daysKostal
Kostal BackUp Switch G3 Manual Three-Phase Changeover Switch 63A for PLENTICORE G3
The BackUp Switch G3 is the manual changeover switch that lets a Kostal PLENTICORE G3 system with a battery keep the house supplied when the public grid disappears. It is fitted in the distribution board and wired to the inverter; during a blackout you turn it by hand to move from the grid to an island supplied by the PV array and the battery.
It is a three-phase switch with two separate outputs: one for the loads that must stay live in backup mode, the other for normal grid operation. It includes cable break detection on the signal that tells the inverter which way the switch is set, so the system always knows its own configuration. A local neutral point replica can also be connected.
It takes just 8 DIN modules and sits on the same top-hat rail as the Kostal Smart Energy Meter, so it goes into an existing sub-distribution board or a separate enclosure. It suits domestic connections up to 63A and is declared compatible with every inverter in the PLENTICORE G3 series. It weighs 0.52kg. Changeover is manual: there is no automatic transfer.
Key strengths
Power through a blackoutWith PV and a battery the system keeps feeding the loads with the grid down.
Manual three-phase operationHand changeover between grid and island mode, across three phases.
Two separate outputsOne for backup loads, one for normal grid operation.
Only 8 DIN modulesShares the rail with the Kostal Smart Energy Meter, even in an existing sub-board.
Up to 63ARated for domestic service connections up to 63A.
Position reported to the inverterCable break detection on the switch position signal.
Technical specifications
| Feature | Value |
|---|---|
| Product code | KOSTAL-PLENTICORE-G3-BACKUP |
| Manufacturer | Kostal |
| Type | Manual grid changeover switch for backup operation |
| Configuration | Three-phase |
| Service connection current | up to 63A |
| Compatibility | All inverters in the Kostal PLENTICORE G3 series |
| Outputs | One for backup loads, one for grid operation |
| Diagnostics | Cable break detection on the position signal |
| Footprint | 8 DIN rail modules |
| Installation | In an existing sub-distribution board or a separate enclosure |
| Local neutral point replica | Connection provided for |
| Weight | 0.52kg |
