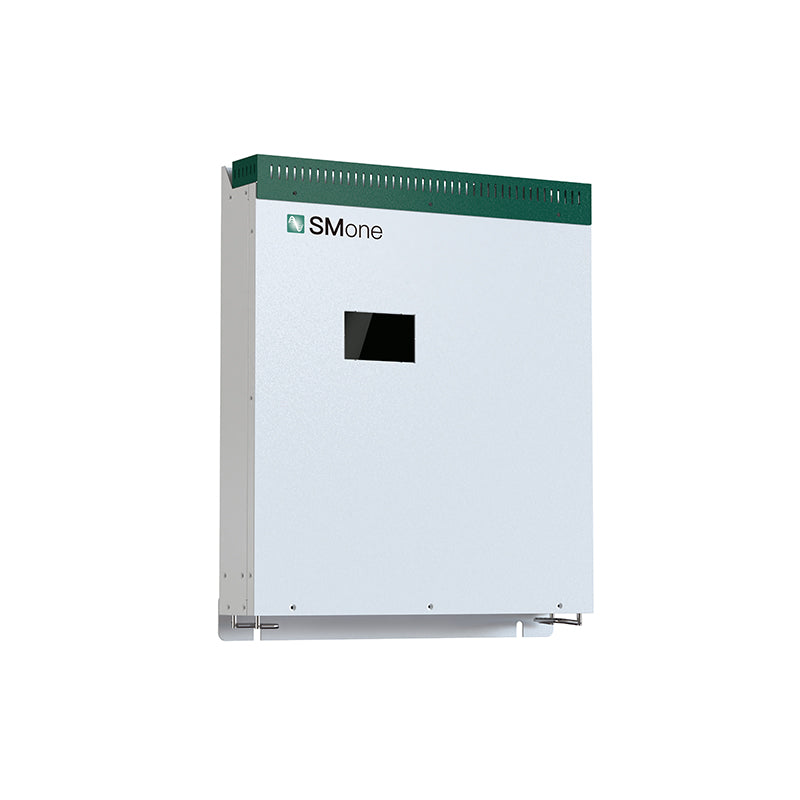

SMone SM-ASVG-15-0.4-4L-W ASVG Active Compensator 15 kVAr 400 V with Wall-Mounted Panel
The SMone SM-ASVG-15-0.4-4L-W is a static active reactive power compensator rated 15 kVAr for 400 V three-phase networks, supplied with a touchscreen control panel. Using IGBT electronics it generates the reactive current needed to correct the cos φ of the installation, compensating both inductive loads (motors, transformers) and capacitive ones (cables, uninterruptible power supplies, photovoltaic systems at low output).
Alongside compensation, it carries out harmonic filtering from the 2nd to the 23rd order and rebalances the asymmetry between the phases. It is installed on the wall in the switchgear room, with a 3L+N+PE connection and current measurement through external current transformers. The built-in touchscreen display and the RS485 Modbus port allow commissioning and continuous monitoring of the network parameters.
Key features
15 kVAr with stepless adjustmentThe reactive power delivered varies continuously from 0 to 15 kVAr, without the steps of capacitor banks.
Inductive and capacitive compensationSuitable both for installations with motors and for systems with a strong capacitive component, typical of photovoltaic plants.
Harmonic filter up to the 23rd orderIt cuts harmonic currents up to 8 A, reducing the heating of cables and transformers.
Response time < 10 msIt follows rapid load variations while keeping the power factor stable.
Built-in protectionsProtection against overload, overcurrent, overvoltage, network asymmetry, overtemperature, frequency variations and short circuit.
Touchscreen panel and RS485Configuration and diagnostics from the integrated colour display; RS485 Modbus communication for remote supervision.
Technical specifications
| Feature | Value |
|---|---|
| Product code | 106023 |
| Model | SM-ASVG-15-0.4-4L-W |
| Type | Active static reactive power compensator (ASVG) with harmonic filter |
| Reactive power | 15 kVAr (inductive and capacitive) |
| Rated voltage | 400 V AC ±20 % |
| Phases | Three-phase 3L + N + PE |
| Frequency | 50 Hz ±5 % |
| Compensation type | Dynamic, per individual phase, with unbalance correction |
| Harmonic filtering | From the 2nd to the 23rd harmonic, up to 8 A |
| Response time | < 10 ms |
| Efficiency | > 97 % |
| Compensation factor | > 95 % |
| Current transformers (CT) | External, not included |
| Cooling | Forced ventilation |
| Communication | RS485 Modbus, integrated colour touch panel |
| Mounting | Wall-mounted |
| Protection rating | IP20 |
| Operating temperature | Da -20 a +50 °C |
| Dimensions | 460 × 557 × 91 mm |
| Weight | 18.0 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
