Delivery in 10-20 daysKostal

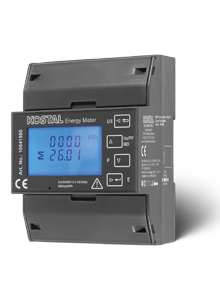

Kostal Energy Meter P KEM-P Three-Phase 100A Direct Connection RS485 Modbus RTU

The KEM-P is the meter that lets a storage system be tied to a Kostal inverter: it measures energy flows at the point the inverter needs in order to decide when to charge the battery, when to discharge it and how much to draw from the grid. It is the component that makes managed self-consumption possible, and without a reliable measurement that management simply does not exist.

It works three-phase up to 100A with direct connection: the conductors pass through the meter, no current transformers needed. It sits on a DIN rail in 3 modules (100/72/66mm) and talks to the inverter over RS485 using Modbus RTU. Protection is IP20, so its place is inside the enclosure.

Kostal states it can be used with PLENTICORE plus, PLENTICORE BI and PLENTICORE G3 inverters; the exact list of models and approved application cases is in the Kostal "Approved Energy Meters" document, worth checking before you order. One thing worth knowing: on many systems the KEM is enough and there is no need to move up to the KSEM, which is more capable but also dearer. That saving is often missed because the KSEM goes in out of habit.

Key strengths

Three-phase 100A directConductors run through the meter: no CTs to add.
RS485 Modbus RTUSerial link to the inverter on an open, proven protocol.
3 DIN modules100/72/66mm: it fits a crowded enclosure.
For PLENTICORE invertersplus, BI and G3 series: exact list in the Kostal document.
Often the KEM is enoughWhere the application allows it, it saves the cost of a KSEM.

Technical specifications

Feature Value
Product code KOSTAL-ENERGY-P
Manufacturer Kostal
Model Energy Meter P series (KEM-P)
Type Bidirectional DIN rail energy meter
Phases three-phase
Maximum current (Imax) 100A
Connection type direct, no current transformers
Communication RS485
Protocol Modbus RTU
Compatibility Kostal PLENTICORE plus, PLENTICORE BI and PLENTICORE G3 inverters
Mounting DIN rail, 3 modules wide
Dimensions (H/W/D) 100/72/66mm
Ingress protection IP20
Weight 0.32kg
PDFManufacturer datasheetPDF document
