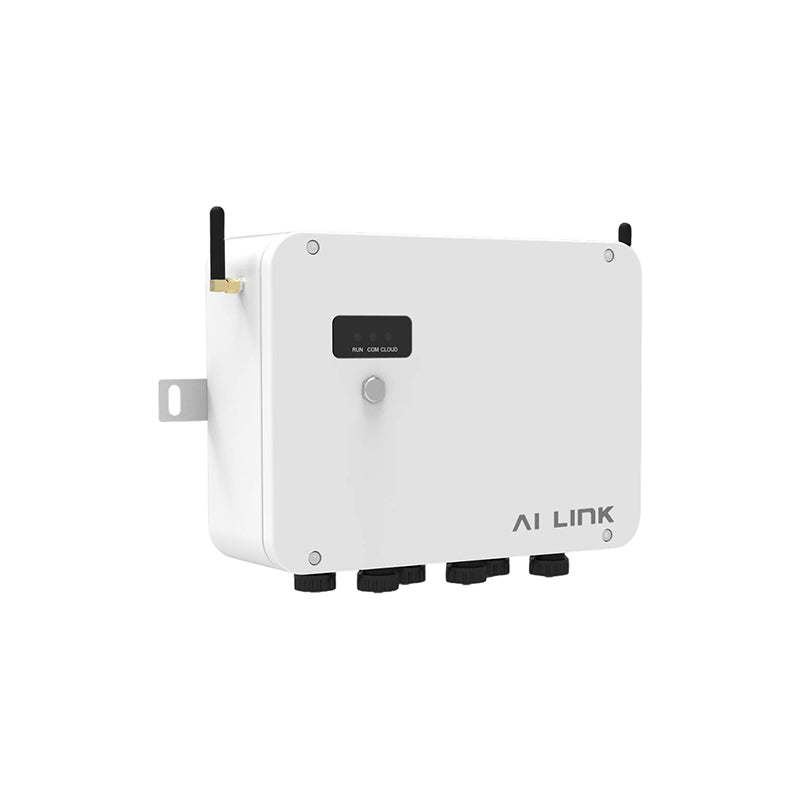

FoxESS AI Link A-1000 Monitoring and Control Gateway for Residential Installations
FoxESS AI Link A-1000 Monitoring and Control Gateway for Residential Installations
Regular price
€438.63
Regular price
Sale price
€438.63
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
11 units in stock at our supplier
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 daysMonitoringFoxESS
FoxESS AI Link A-1000 Monitoring and Control Gateway for Residential Installations
The FoxESS AI Link A-1000 is the communication gateway and EMS of FoxESS photovoltaic and storage systems. In this configuration it is intended for residential installations, in particular those built with H3 Pro three-phase hybrid inverters, whose parallel operation it enables: up to 10 units in grid-connected systems and up to 4 units in off-grid operation.
It is wall-mounted, indoors or outdoors, thanks to its IP65 protection rating. It has 4 RS485 ports for inverters, meters and batteries, 2 Ethernet ports, Wi-Fi and optional 4G for the connection to the FoxCloud portal, as well as 6 digital inputs for the grid operator's remote control commands and 3 relay outputs. It manages self-consumption with zero grid feed-in, peak shaving with control of the batteries' state of charge, the regulation of active and reactive power, the integration of a generator set for backup and the centralized firmware update of all the inverters.
Key features
Parallel operation of H3 Pro invertersIt coordinates the parallel operation of FoxESS H3 Pro hybrid inverters: up to 10 units grid-connected and 4 in off-grid mode.
Energy management (EMS)Peak shaving, control of the batteries' state of charge and self-consumption priorities managed directly by the gateway.
Zero grid feed-inZero feed-in function that prevents energy from being fed into the grid in self-consumption-only systems.
Complete connectivity4 RS485 Modbus RTU / SunSpec ports, 2 Ethernet 10/100 M ports, 2.4 GHz Wi-Fi and optional 4G to FoxCloud.
Ready for a generatorIt supports the integration of a diesel generator set for continuity of supply in backup systems.
Indoor or outdoor installationIP65 enclosure with wall mounting and operation from −30 to +60 °C up to an altitude of 4000 m.
Technical specifications
| Feature | Value |
|---|---|
| Product code | A-1000_30-306-00005-00 |
| Model | AI Link A-1000 (code 30-306-00005-00, version for residential systems) |
| Function | Communication gateway, data logger and EMS for FoxESS PV and storage systems |
| Managed devices | FoxESS H3 Pro inverters in parallel (max 10 on-grid, 4 off-grid); up to 30 inverters in total on the bus |
| Communication interfaces | 4 × RS485 (Modbus RTU / SunSpec, 9600 – 115200 bps), 2 × Ethernet RJ45 10/100 M, Wi-Fi 802.11 b/g/n/ac 2.4 GHz, optional 4G LTE |
| Digital inputs and outputs | 6 digital inputs (6 – 24 Vdc), 3 relay outputs |
| Power supply | 10 – 27 Vdc (also from the H3 Pro inverter) |
| Consumption | 20 W typical, < 30 W maximum |
| Mounting | Wall-mounted, indoor or outdoor |
| Protection rating | IP65 |
| Operating temperature | −30 °C / +60 °C |
| Storage temperature | −40 °C / +70 °C |
| Relative humidity | ≤ 95 % non-condensing |
| Maximum altitude | 4000 m |
| Dimensions | 192 × 260 × 88 mm |
| Weight | 2.5 kg |
Documentation
PDFDatasheet A-1000_30-306-00005-00Official manufacturer documentInstallation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
