String inverter SolaX X3-FTH-120K 120 kW three-phase 12 MPPT

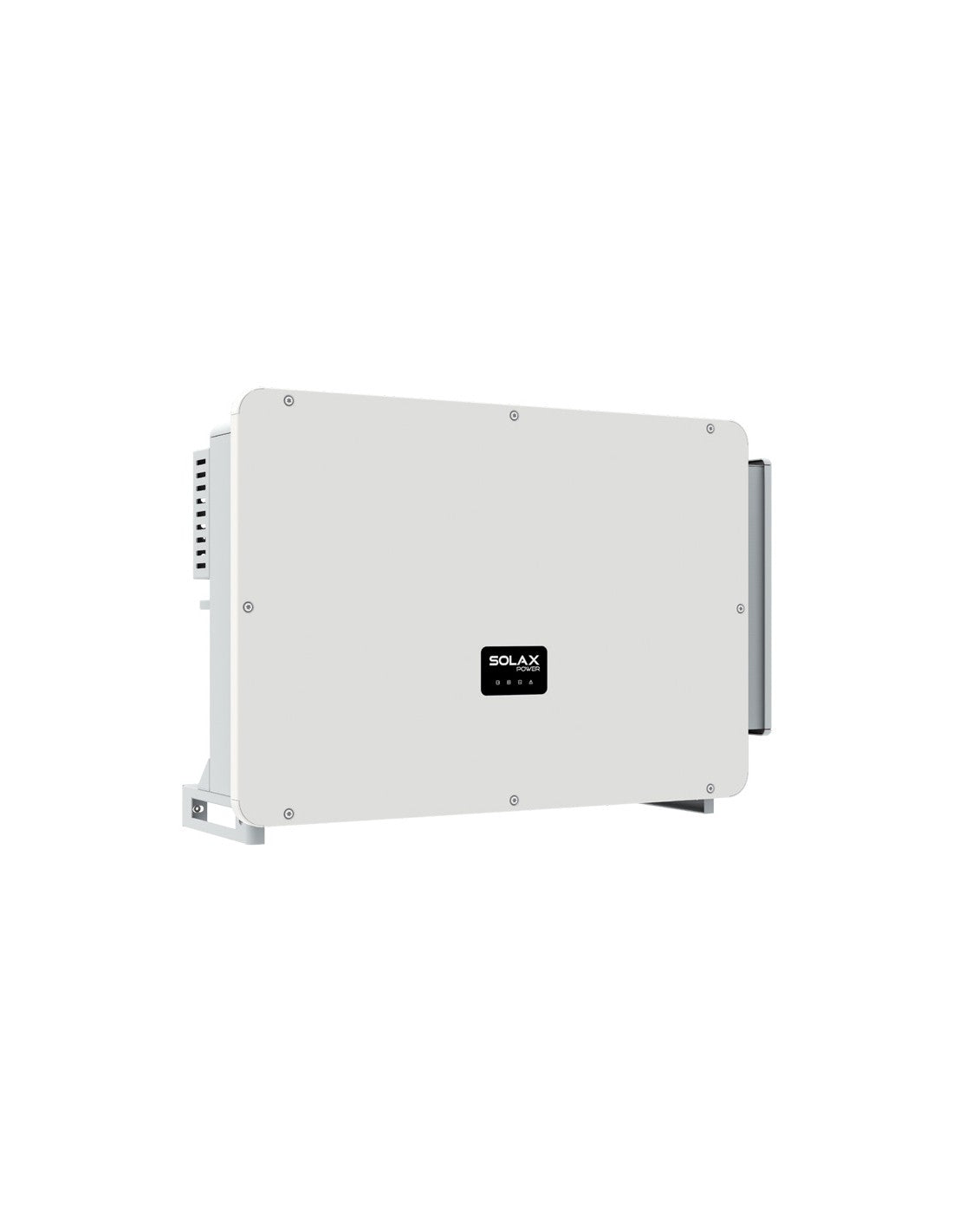

The SolaX X3-FTH-120K is a three-phase string inverter rated 120 kW for grid-connected PV systems: it converts the energy of the modules into alternating current and feeds it into the building installation or the grid.
The interface protections and grid parameters are those required for connection in Italy to CEI 0-21 (low voltage) and CEI 0-16 (medium voltage). The inputs are 12 MPPT, with independent MPPT tracking: useful when the strings have different exposure or when part of the array is shaded for some hours of the day.
SolaX Power is one of the most widespread brands in Europe for hybrid inverters and storage: a very broad range, the SolaX Cloud monitoring portal and frequent firmware updates.
Key strengths
MPPT trackingIndependent inputs get the most out of strings with different orientation or shading.
High efficiencyElectronics sized for low conversion losses across the whole load curve.
CEI complianceGrid settings for connection in Italy to CEI 0-21 and CEI 0-16.
Built-in monitoringManufacturer portal and app for yield, alarms and string data.
Standard protectionsDC disconnector, surge protection and insulation monitoring to earth.
Outdoor installationProtected enclosure for wall mounting even outside the plant room.
Technical specifications
| Feature | Value |
|---|---|
| Product code | X3-FTH-120K |
| Manufacturer | SolaX |
| Series | X3-FTH |
| Type | String inverter |
| Rated power | 120 kW |
| Power supply | Three-phase 400 V |
| MPPT trackers | 12 |
| Hybrid inverter | No, PV-only inverter |
| Dimensions (W x D x H) | 985 x 660 x 327.5 mm |
| Certifications | CEI 0-21, CEI 0-16 |
| Mounting | Wall mounted |
