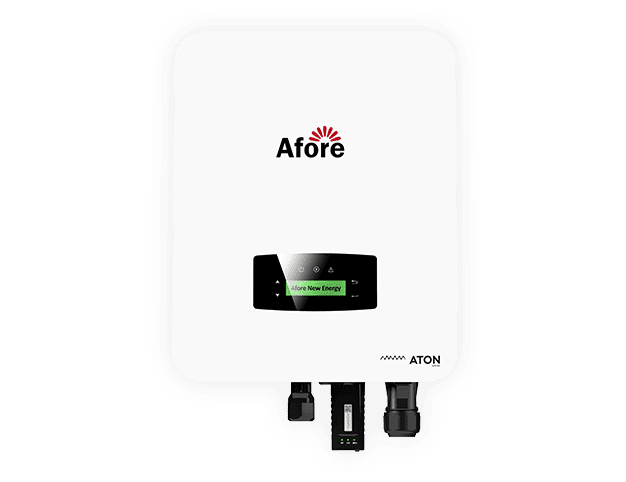

Afore AF3.6K-SL 3.6 kW Single-Phase Low-Voltage Hybrid Inverter, 2 MPPT
Afore AF3.6K-SL 3.6 kW Single-Phase Low-Voltage Hybrid Inverter, 2 MPPT
Regular price
€1,072.50
Regular price
Sale price
€1,072.50
Unit price
per
Tax included.
AVAILABILITY
58 units in stock at our supplier
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices shown include 22% Italian VAT. The 10% rate applies only to goods for photovoltaic and storage systems, with a declaration from the customer. From outside Italy: pick 22% VAT, or for 0% VAT place the order by bank transfer without paying and we will send a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysAfore
Afore AF3.6K-SL 3.6 kW Single-Phase Low-Voltage Hybrid Inverter, 2 MPPT
The AF3.6K-SL is a 3.6 kW single-phase hybrid with 48 V storage: the size for a flat or a small house, where a 6 kW unit would be oversized and paid for without being used. Two MPPTs and four independent strings are a lot at this power, and they matter when the roof has pitches facing different ways.
The built-in UPS function switches in under 10 milliseconds: when the grid drops, loads on the backup output do not notice, the fridge stays on and the computer does not reboot. It communicates over Wi-Fi, RS485 and CAN, with remote monitoring and GPRS/4G where the home network does not reach.
IP65, so it can go in an unheated room or under a canopy. 540 × 450 × 260 mm for 20.5 kg: one person can mount it. CEI 0-21 certified for grid connection in Italy.
At a glance
Product code: VT-AF3.6K-SLAfore New Energy has been making PV inverters since 2010 and has a single-phase hybrid line built for the European market, CEI 0-21 certified for Italy.
Rated AC power: 3.600 W (3,6 kW)Afore New Energy has been making PV inverters since 2010 and has a single-phase hybrid line built for the European market, CEI 0-21 certified for Italy.
Phase: single-phaseAfore New Energy has been making PV inverters since 2010 and has a single-phase hybrid line built for the European market, CEI 0-21 certified for Italy.
MPPTs and strings: 2 MPPTs, 4 independent stringsAfore New Energy has been making PV inverters since 2010 and has a single-phase hybrid line built for the European market, CEI 0-21 certified for Italy.
Max PV voltage: 550 VAfore New Energy has been making PV inverters since 2010 and has a single-phase hybrid line built for the European market, CEI 0-21 certified for Italy.
Technical data
| Specification | Value |
|---|---|
| Product code | VT-AF3.6K-SL |
| Rated AC power | 3.600 W (3,6 kW) |
| Phase | single-phase |
| MPPTs and strings | 2 MPPTs, 4 independent strings |
| Max PV voltage | 550 V |
| MPPT range | 110 – 500 V |
| Battery | low voltage, 40–60 V (51.2 V nominal) |
| Charge and discharge power | up to 3.6 kW |
| UPS function | built in, switching under 10 ms |
| Communication | Wi-Fi, RS485, CAN; GPRS/4G supported |
| Protection rating | IP65 |
| Dimensions and weight | 540 × 450 × 260 mm, 20,5 kg |
| Grid code | CEI 0-21 |
