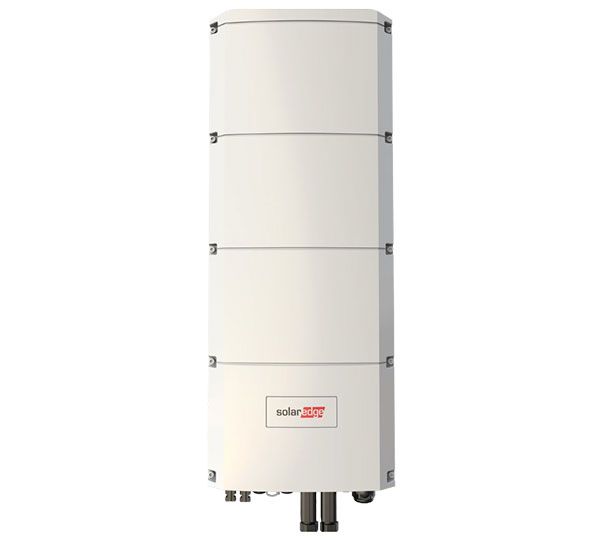

SolarEdge Home Hub SE10K-RWB48BFN4 Hybrid Inverter 10 kW Three-Phase
SolarEdge Home Hub SE10K-RWB48BFN4 Hybrid Inverter 10 kW Three-Phase
Regular price
€2,058.44
Regular price
Sale price
€2,058.44
Unit price
per
Tax included.
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices include 22% Italian VAT; the reduced 10% rate covers only goods for photovoltaic and storage systems, with a customer declaration. From abroad: choose 22% VAT, or for 0% VAT place the order by bank transfer without paying and we send you a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysThree-phase hybrid10 kW48 V storageWarranty 12 yearsSolarEdge
SolarEdge Home Hub SE10K-RWB48BFN4 Hybrid Inverter 10 kW Three-Phase
The SE10K-RWB48BFN4 is the three-phase hybrid inverter of the SolarEdge Home Hub family: one unit manages PV production, 48 V low-voltage storage and the household loads. It is the natural choice for a SolarEdge system with a battery when you prefer to work at low voltage rather than high voltage.
Rated power 10 kW, up to 15 kW of PV input, 97.6% European efficiency and AFCI arc fault protection. Like every SolarEdge inverter it works with power optimizers and is configured from a smartphone with SetApp.
Key strengths
10 kW three-phase hybridPV, storage and loads managed by a single unit.
48 V storageCompatible with SolarEdge Home low-voltage batteries.
Up to 15 kW of PVGenerator oversizing up to 150%.
97.6% efficiencyHigh performance also at partial load.
Integrated AFCIDC arc fault detection.
12-year warrantyExtendable under the SolarEdge programme.
Technical specifications
| Feature | Value |
|---|---|
| Product code | SE10K-RWB48BFN4 |
| Manufacturer | SolarEdge |
| Rated power | 10.000 W |
| Maximum input power | 15.000 W |
| Power supply | Three-phase 400 V |
| Hybrid inverter | Yes, 48 V storage |
| MPPT voltage | 750 V |
| Maximum current per MPPT | 20 A |
| European efficiency | 97,6 % |
| Arc fault protection (AFCI) | Yes |
| Communication | Ethernet, RS485 |
| Dimensions (W x D x H) | 317 x 192 x 907 mm |
| Warranty | 12 years |
Documentation
PDFDatasheetTechnical data of the product — SE10K-RWB48BFN4PDFInstallation manualMounting and wiring instructions — SE10K-RWB48BFN4PDFWarranty termsManufacturer's warranty — SE10K-RWB48BFN4PDFDeclaration of conformityCE conformity document — SE10K-RWB48BFN4The battery and the power optimizers are not included: choose them among the compatible 48 V SolarEdge Home models.
