Deye 35.4 kWp Solar Kit with 30.72–61.44 kWh Battery – 30 kW Three-Phase Hybrid Inverter, Commercial/Industrial

Deye 35.4 kWp Solar Kit with 30.72–61.44 kWh Battery – 30 kW Three-Phase Hybrid Inverter, Commercial/Industrial

€22,336.29
€22,336.29
Sale Sold out
Tax included.
Storage capacity
VAT rate
View full details
VAT note
Businesses and private customers outside Italy: purchase with 22% VAT. The 10% VAT rate is reserved for private customers resident in Italy — learn more.
Foreign businesses entitled to 0% VAT: write to info@litio.store.
Shipping costs
Italy: €120.European Union: €350.

Deye 35.4 kWp Solar Kit with 30.72–61.44 kWh Battery – 30 kW Three-Phase Hybrid Inverter, Commercial/Industrial

Scalable solution for commercial and industrial sites, built to maximise self-consumption

🚚 Delivery in 10–20 days for modules, inverter and storage; the AC (with CEI 0-21 interface protection) and DC protection panels have a 3–4 month lead time.

Commercial & Industrial Solar Kit

Three-phase hybrid PV system for grid-connected operation with energy management, storage and backup, designed around the Deye SUN-30K-SG02HP3-EU inverter, for commercial applications.

☀️ 35.4 kWp
Solar		🔋 30.72–61.44 kWh
Storage		⚡ 30 kW
Inverter		🔌 Three-Phase
Hybrid

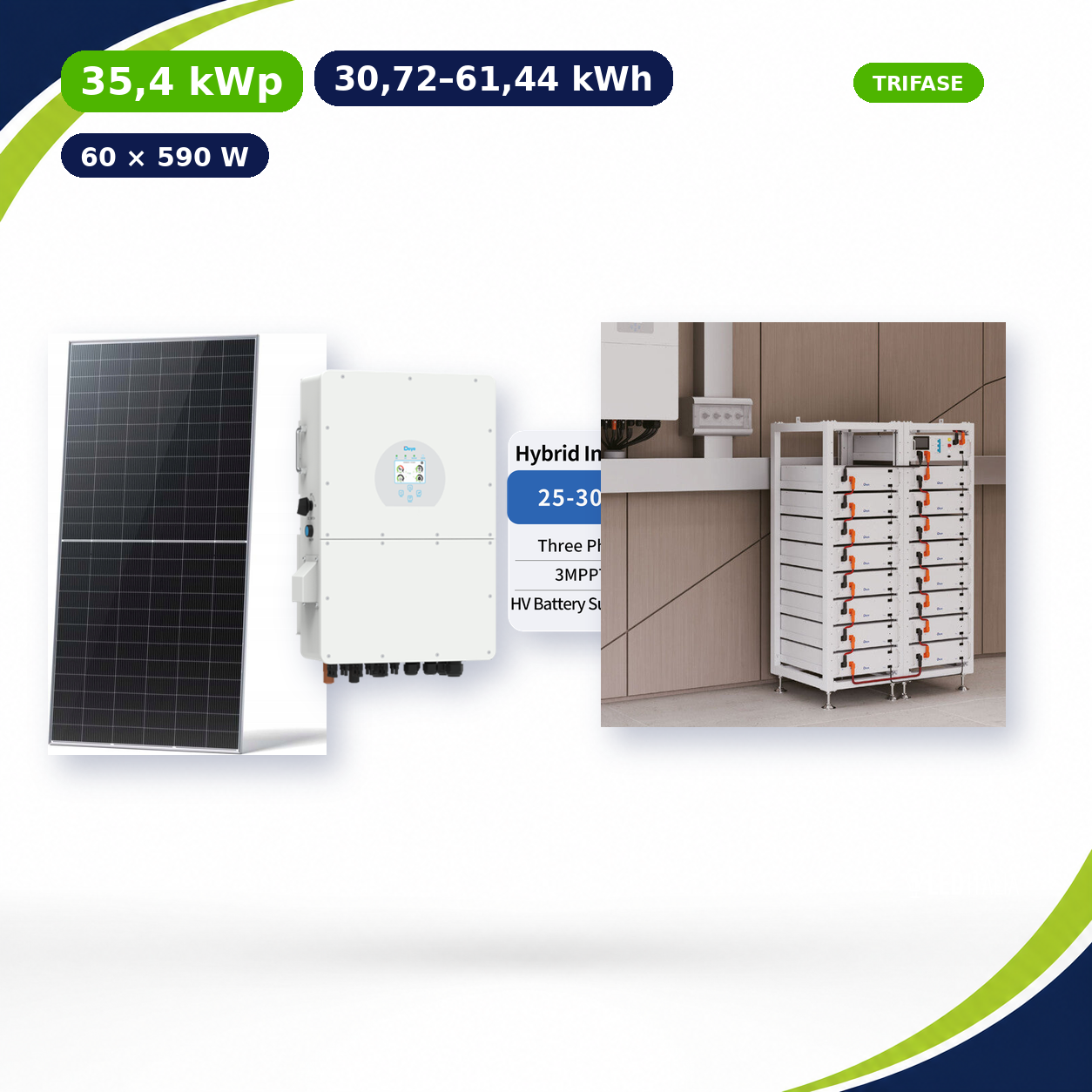

Kit Contents

60× 590 W N-Type TOPCon bifacial double-glass Silver Frame modules

for a total output of 35.4 kWp.

1× Deye SUN-30K-SG02HP3-EU 30 kW Three-Phase

Selectable storage:

Deye BOS-G-Pack5.1 LiFePO4 5.12 kWh 51.2 V with BOS-G-PDU-2 PRO PDU/BMS and 13-level 3U-HRack-2G rack cabinet included — 30.72 kWh (6 modules, 307.2 V) or 61.44 kWh (12 modules, 614.4 V).

1× Three-phase PV AC panel 30 kW 50 A with CEI 0-21 SPI, IP65

Protection and isolation of the AC grid connection.

1× PV DC panel 4 strings 4 MPPT 1000 V 32 A with 4 SPDs, IP66

Protection and isolation of the PV strings on the DC side.

PV String Design

Preliminary sizing with modules in a 4×15 configuration. This is a preliminary commercial study: the final string configuration, MPPT voltage and current limits must be re-checked against the datasheet of the inverter revision actually purchased and the site conditions (minimum design temperature).

Storage, Grid and Operation

  • ✓Grid-connected operation with storage and energy flow management.
  • ✓LiFePO₄ batteries.
  • ✓Deye BOS-G system: 3 to 12 modules in series per BOS-G-PDU-2 PRO PDU/BMS, installed in the 3U-HRack-2G rack cabinet; CAN communication with the inverter. With 6 or 12 modules the nominal voltage (307.2 V or 614.4 V) falls within the inverter’s 160–700 V battery range.

A consistent, well-engineered system

The kit uses selected components and a PV configuration sized to the inverter’s electrical limits, for a robust, consistent commercial or industrial system ready for installation by qualified personnel. The kit includes only the specified PV panels, inverter, storage battery/batteries, and AC and DC protection panels. Mounting structures, cables, connectors and installation are not included and must be sized by the installer to suit the site. Installation and grid connection must be carried out by licensed personnel.
