Deye 99.12 kWp Solar Kit with 99.84–199.68 kWh Battery – 80 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Deye 99.12 kWp Solar Kit with 99.84–199.68 kWh Battery – 80 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Regular price
€62,165.64
Regular price
Sale price
€62,165.64
Unit price
per
Tax included.
Couldn't load pickup availability
Deye 99.12 kWp Solar Kit with 99.84–199.68 kWh Battery – 80 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Scalable solution for commercial and industrial sites, built to maximise self-consumption
🚚 Delivery in 10–20 days for modules, inverter and storage; the AC (with CEI 0-21 interface protection) and DC protection panels have a 3–4 month lead time.
Commercial & Industrial Solar Kit
Three-phase hybrid PV system for grid-connected operation with energy management, storage and backup, designed around the Deye SUN-80K-SG02HP3-EU inverter, for industrial applications.
| ☀️ 99.12 kWp Solar | 🔋 99.84–199.68 kWh Storage | ⚡ 80 kW Inverter | 🔌 Three-Phase Hybrid |

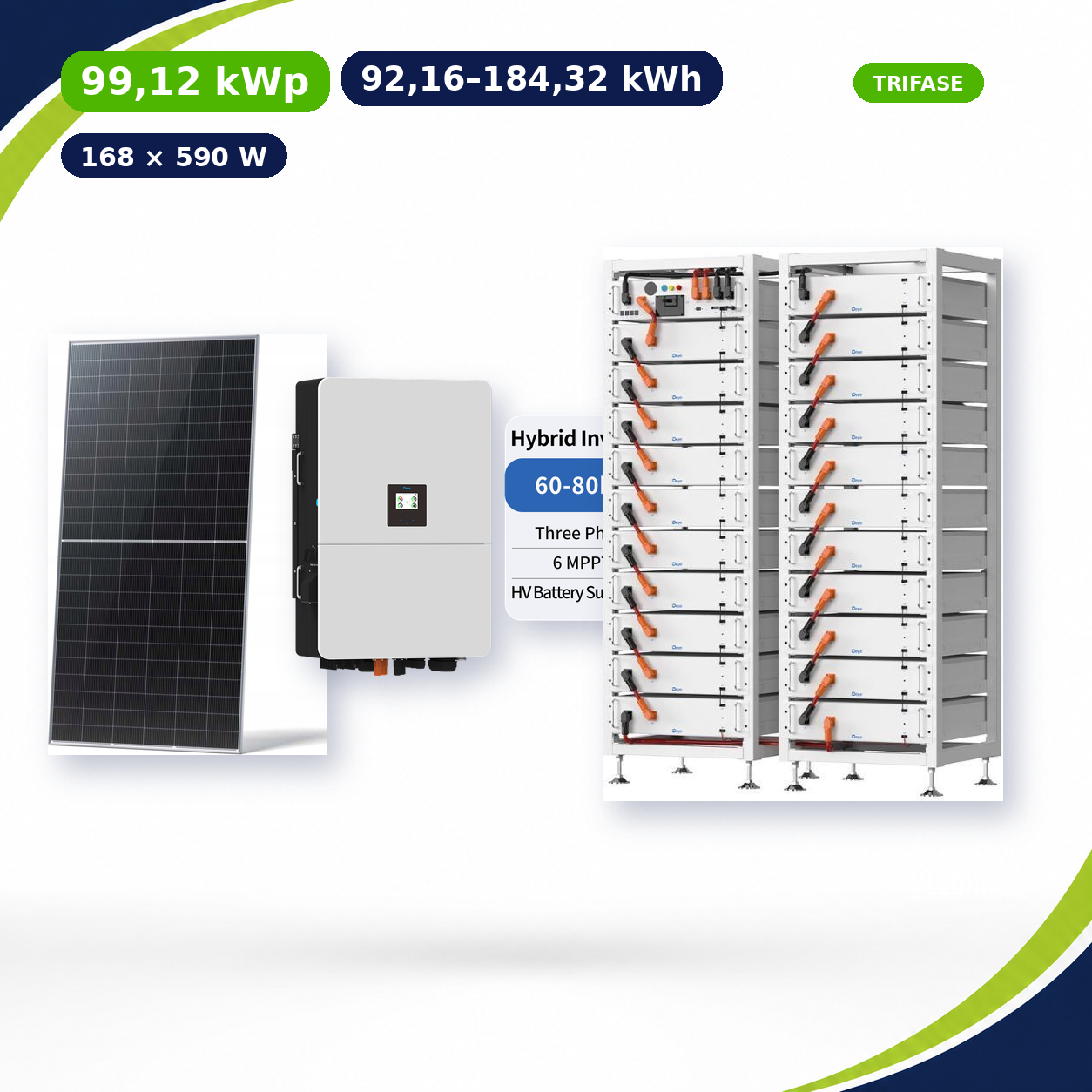

Kit Contents
168× 590 W N-Type TOPCon bifacial double-glass Silver Frame modules
for a total output of 99.12 kWp.
1× Deye SUN-80K-SG02HP3-EU-EM6 80 kW Three-Phase
Selectable storage:
Deye BOS-A LiFePO4 7.68 kWh 38.4 V with BOS-A-PDU-2 PDU (1000 V, 160 A) and 14-level BOS-A rack cabinet included — 99.84 kWh (13 modules, 1 PDU and 1 rack) or 199.68 kWh (26 modules in two systems of 13, each with its own PDU and rack, one for each of the two battery inputs).
1× Three-phase PV AC panel 100 kW 160 A with adjustable RCD and SPI, IP65
Protection and isolation of the AC grid connection.
1× PV DC panel 8 strings 8 MPPT 1000 V 32 A with 8 SPDs, IP66
Protection and isolation of the PV strings on the DC side.
1× PV DC panel 4 strings 4 MPPT 1000 V 32 A with 4 SPDs, IP66
Protection and isolation of the PV strings on the DC side.
PV String Design
Preliminary sizing with modules in a 12×14 configuration. This is a preliminary commercial study: the final string configuration, MPPT voltage and current limits must be re-checked against the datasheet of the inverter revision actually purchased and the site conditions (minimum design temperature).
Storage, Grid and Operation
- ✓Grid-connected operation with storage and energy flow management.
- ✓LiFePO₄ batteries.
- ✓Deye BOS-A system: the modules are connected in series in strings of 7, 13 or 21; with 13 modules the nominal voltage is 499.2 V, within the battery range of the inverter, which has two battery inputs.
A consistent, well-engineered system
The kit uses selected components and a PV configuration sized to the inverter’s electrical limits, for a robust, consistent commercial or industrial system ready for installation by qualified personnel. The kit includes only the specified PV panels, inverter, storage battery/batteries, and AC and DC protection panels. Mounting structures, cables, connectors and installation are not included and must be sized by the installer to suit the site. Installation and grid connection must be carried out by licensed personnel.
