SolaX 14.14 kWp Solar Kit – 12 kW Three-Phase Hybrid, Commercial/Industrial

SolaX 14.14 kWp Solar Kit – 12 kW Three-Phase Hybrid, Commercial/Industrial

€7,476.05
€7,476.05
Sale Sold out
Tax included.
VAT rate
View full details

SolaX 14.14 kWp Solar Kit – 12 kW Three-Phase Hybrid Inverter, Commercial/Industrial

Scalable solution for commercial and industrial sites, built to maximise self-consumption

🚚 Delivery in 10–20 days for modules and inverter; the AC (with CEI 0-21 interface protection) and DC protection panels have a 3–4 month lead time.

Commercial & Industrial Solar Kit

Three-phase hybrid PV system for grid-connected operation with energy management, designed around the SolaX X3-HYBRID-12.0-D inverter, for medium-sized businesses.

☀️ 14.14 kWp
Solar		⚡ PV Only
No Storage		⚡ 12 kW
Inverter		🔌 Three-Phase
Hybrid

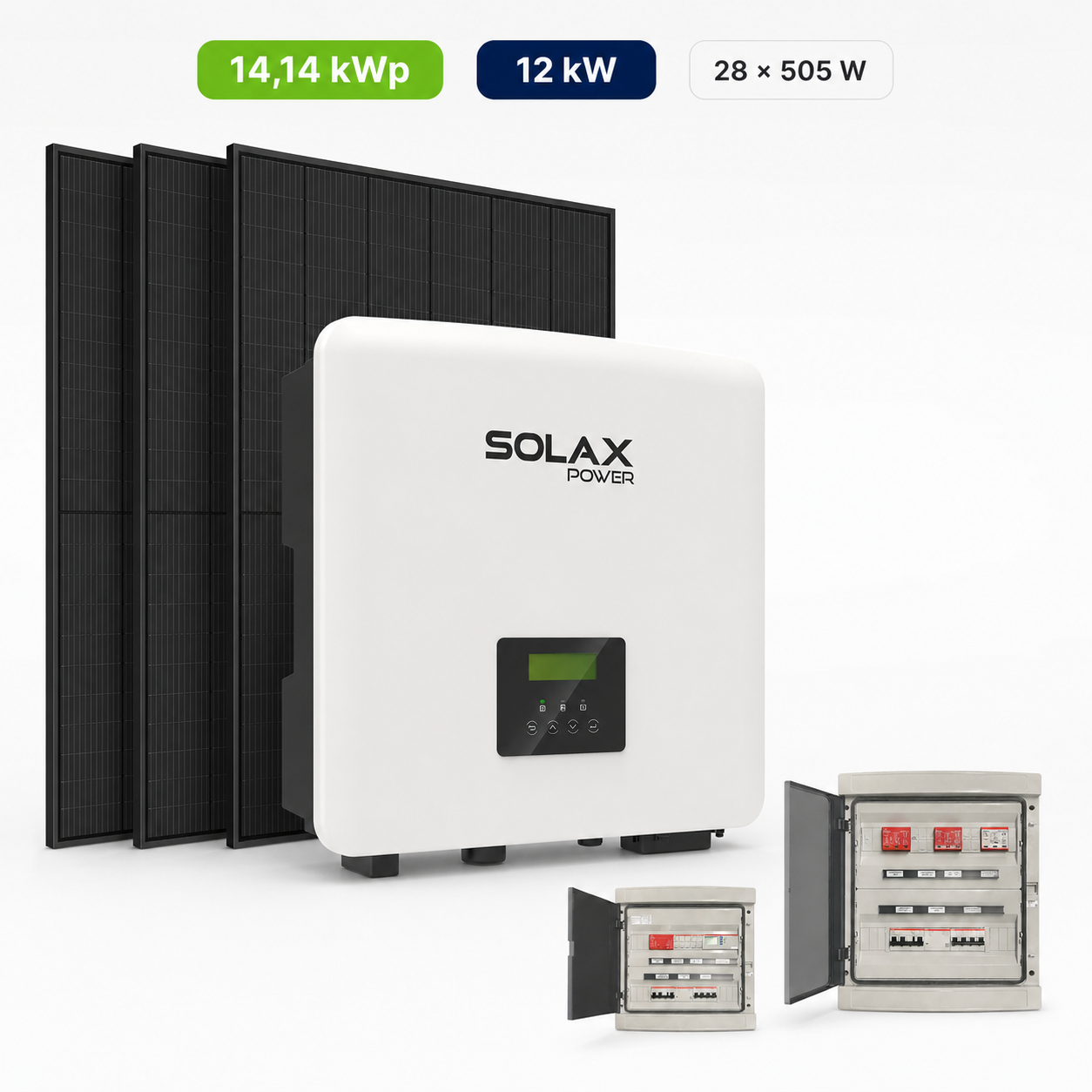

Kit Contents

28× Trina Vertex S+ 505 W N-Type TOPCon bifacial Full Black modules

for a total output of 14.14 kWp.

1× SolaX X3-Hybrid-12.0-D 12kW 12000W Three-Phase

1× Three-phase PV AC panel 15 kW 25 A with CEI 0-21 SPI and SPD, IP65

Protection and isolation of the AC grid connection.

1× PV DC panel 2 strings 2 MPPT 900 V 14–20 A with MCBs and SPD, IP65

Protection and isolation of the PV strings on the DC side.

PV String Design

Preliminary sizing with modules in a 2×14 configuration. This is a preliminary commercial study: the final string configuration, MPPT voltage and current limits must be re-checked against the datasheet of the inverter revision actually purchased and the site conditions (minimum design temperature).

Storage, Grid and Operation

  • ✓Grid-connected operation.
  • ✓LiFePO₄ batteries not included in this configuration.

A consistent, well-engineered system

The kit uses selected components and a PV configuration sized to the inverter’s electrical limits, for a robust, consistent commercial or industrial system ready for installation by qualified personnel. The kit includes only the specified PV panels, inverter, and AC and DC protection panels. Mounting structures, cables, connectors and installation are not included and must be sized by the installer to suit the site. Installation and grid connection must be carried out by licensed personnel.
