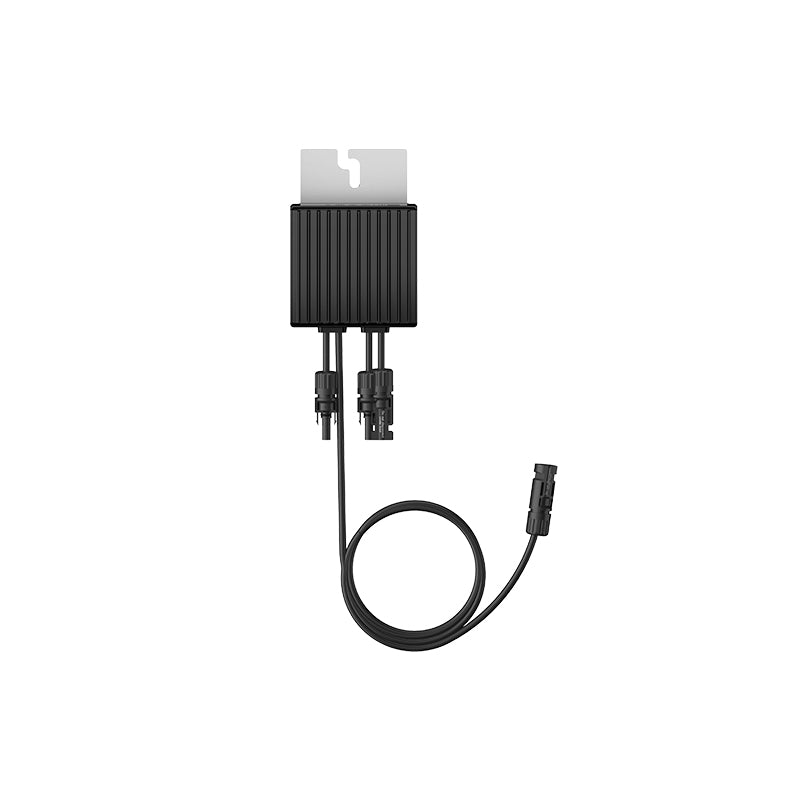

Huawei MERC-1300W-P PV Optimizer 1300 W Long Input Cable 1.3 m
The Huawei MERC-1300W-P in the version with a long input cable is a Smart PV Optimizer rated 1300 W intended for high-power photovoltaic modules with a split junction box and short output cables. The 1.3 m (+/–) input cable makes it easy to reach the module connectors without additional extension leads.
Like the whole MERC range, it carries out MPPT at individual module level, recovering the energy lost to partial shading, dirt and uneven performance, and it makes panel-by-panel production monitoring available in FusionSolar. It also ensures rapid shutdown at module level. It is installed on the back of the panel or on the structure with Staubli MC4 connectors; the IP68 enclosure allows outdoor operation from -40 to +85 °C.
Key features
1.3 m input cableVersion designed for modules with a split junction box and short cables: 1.3 m (+/–) input, (+) 0.1 m / (–) 2.9 m output.
1300 W per moduleRated input power of 1300 W (up to 1430 W), compatible with large-format and bifacial modules.
Module MPPTEach panel works at its own maximum, independently of the others in the string.
Efficiency 99.5 %Maximum efficiency 99.5 % and weighted efficiency 99.0 %.
Rapid shutdownVoltage reduction at module level when the system is stopped, for the safety of the operators.
IP68 enclosureTotal protection rating against dust and water, with operation from -40 to +85 °C and humidity up to 100 %.
Technical specifications
| Feature | Value |
|---|---|
| Product code | MERC-1300W-P |
| Model | MERC-1300W-P (long input cable version) |
| Type | Power optimizer (Smart Module Controller) for a single module |
| Rated DC power | 1300 W (maximum input 1430 W) |
| Max input voltage | 125 V |
| MPPT voltage range | 12.5–105 V |
| Module maximum short-circuit current | 20 A |
| Max output voltage | 80 V |
| Max output current | 22 A |
| Efficiency | 99.5 % maximum, 99.0 % weighted |
| Cable length | Input 1.3 m (+/–); output (+) 0.1 m / (–) 2.9 m |
| Connectors | Staubli MC4 (input and output) |
| Protection rating | IP68 |
| Operating temperature | Da -40 a +85 °C |
| Relative humidity | 0–100 % |
| Standards | IEC 62109-1 (safety class II) |
| Dimensions | 85 × 140 × 50 mm |
| Weight | 1.1 kg (cables included) |
Documentation
PDFDatasheet MERC-1300W-POfficial manufacturer documentInstallation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
