ATS Switchgear for GoodWe ET G2 6 kW Three-Phase Hybrid Inverter
ATS Switchgear for GoodWe ET G2 6 kW Three-Phase Hybrid Inverter
Regular price
€905.34
Regular price
Sale price
€905.34
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 daysATS switchgearAC sideLitio Store
ATS Switchgear for GoodWe ET G2 6 kW Three-Phase Hybrid Inverter

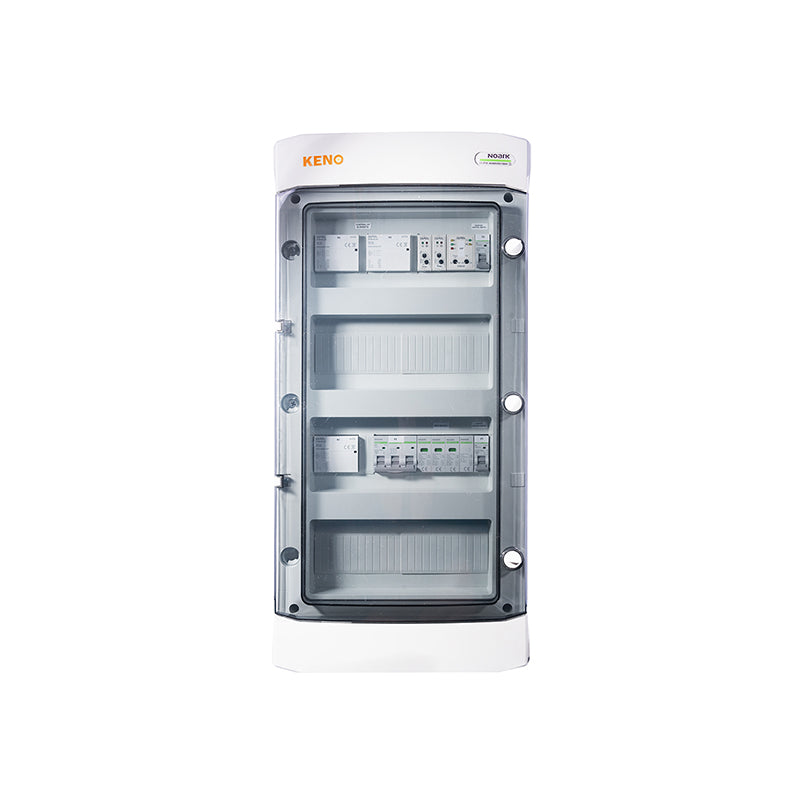

ATS switchgear for automatic grid/backup transfer, dedicated to the GoodWe ET G2 6 kW three-phase hybrid inverter with storage battery. When the public grid fails, the panel disconnects the installation from the grid and automatically supplies the priority loads with energy from the battery and the photovoltaic array, then reconnects in parallel with the grid once the voltage is restored.
It is designed for wall mounting downstream of the inverter, between the main distribution board and the line of the loads to be kept in service during the blackout. The panel arrives assembled, wired and tested, with separate grid circuit and backup circuit, and only the line connections and the earthing have to be completed on site.
Key features
Automatic backupTransfers the priority loads to the backup supply without manual intervention and returns them to the grid once it is restored.
Dedicated to GoodWe ET G2 6 kWWiring and isolation devices sized for the 6 kW rating of the ET G2 three-phase hybrid series.
Separate grid and backup linesThe backup output is independent of the grid line, as required for off-grid operation.
Pre-wired panelCuts installation time: there is no need to assemble or wire the components on site.
IP65 enclosureHalogen-free plastic housing with IP65 protection rating.
Compact dimensions319 × 653 × 144 mm and 7.34 kg, suitable for wall mounting next to the inverter.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | ATS switchgear for automatic grid/emergency changeover |
| System side | AC |
| Compatible inverters | GoodWe ET G2 6 kW (three-phase hybrid) |
| System | Three-phase |
| Rated insulation voltage | 400 V AC |
| Protection rating | IP65 |
| Housing material | Halogen-free plastic material |
| Installation | Wall-mounted |
| Dimensions | 319 × 653 × 144 mm |
| Weight | 7.34 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
