ATS Switchgear for GoodWe ET G2 8 kW Three-Phase Hybrid Inverter
ATS Switchgear for GoodWe ET G2 8 kW Three-Phase Hybrid Inverter
Regular price
€996.00
Regular price
Sale price
€996.00
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysATS switchgearAC sideLitio Store
ATS Switchgear for GoodWe ET G2 8 kW Three-Phase Hybrid Inverter

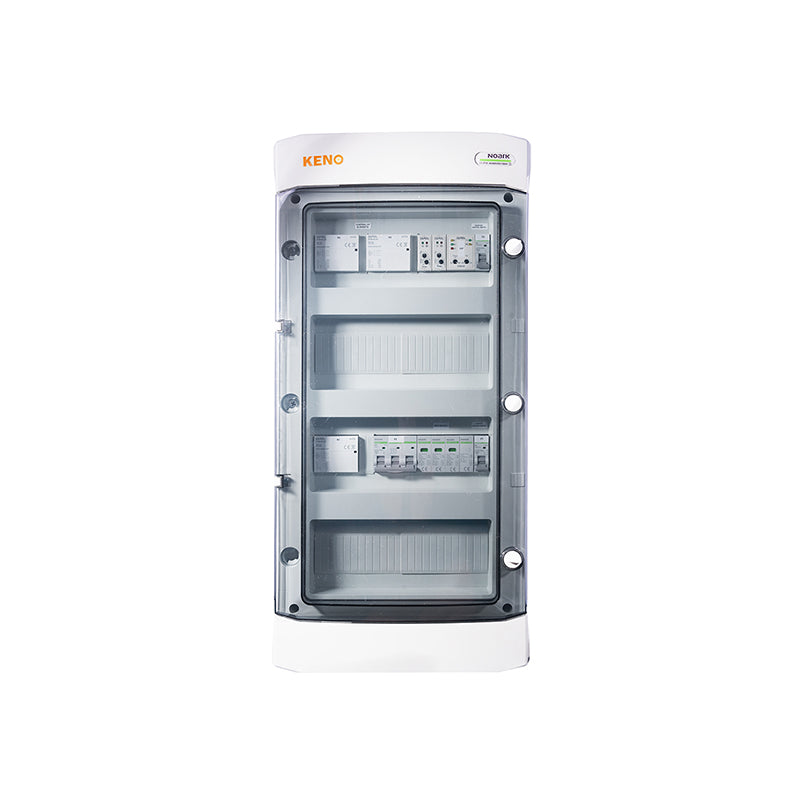

ATS switchgear for automatic grid/backup transfer, dedicated to the GoodWe ET G2 8 kW three-phase hybrid inverter with storage system. In the event of a blackout the panel isolates the installation from the public grid and automatically transfers the priority loads to the backup power supplied by the battery and the photovoltaic generator, with automatic return to the grid once the voltage is restored.
The panel is installed on the wall, downstream of the inverter, between the main distribution board and the line of the loads to be kept supplied. It is delivered pre-wired and tested, with separate grid circuit and backup circuit; on site only the line and earthing connections remain to be made.
Key features
Automatic backupAutomatic transfer of the priority loads to the backup supply when the grid fails.
Dedicated to GoodWe ET G2 8 kWLayout designed for the 8 kW rating of the ET G2 three-phase hybrid series.
Separate grid and backup linesThe backup circuit remains independent of the grid circuit during off-grid operation.
Pre-wired panelFactory assembled and tested: installation is reduced to the line connections.
IP65 enclosureHalogen-free plastic housing with IP65 protection rating.
Wall installation319 × 653 × 144 mm and 7.38 kg, designed to be mounted next to the inverter.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | ATS switchgear for automatic grid/emergency changeover |
| System side | CA |
| Compatible inverters | GoodWe ET G2 8 kW (three-phase hybrid) |
| System | Three-phase |
| Rated insulation voltage | 400 V CA |
| Protection rating | IP65 |
| Housing material | Halogen-free plastic material |
| Installation | Wall-mounted |
| Dimensions | 319 × 653 × 144 mm |
| Weight | 7.38 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
