SolaX

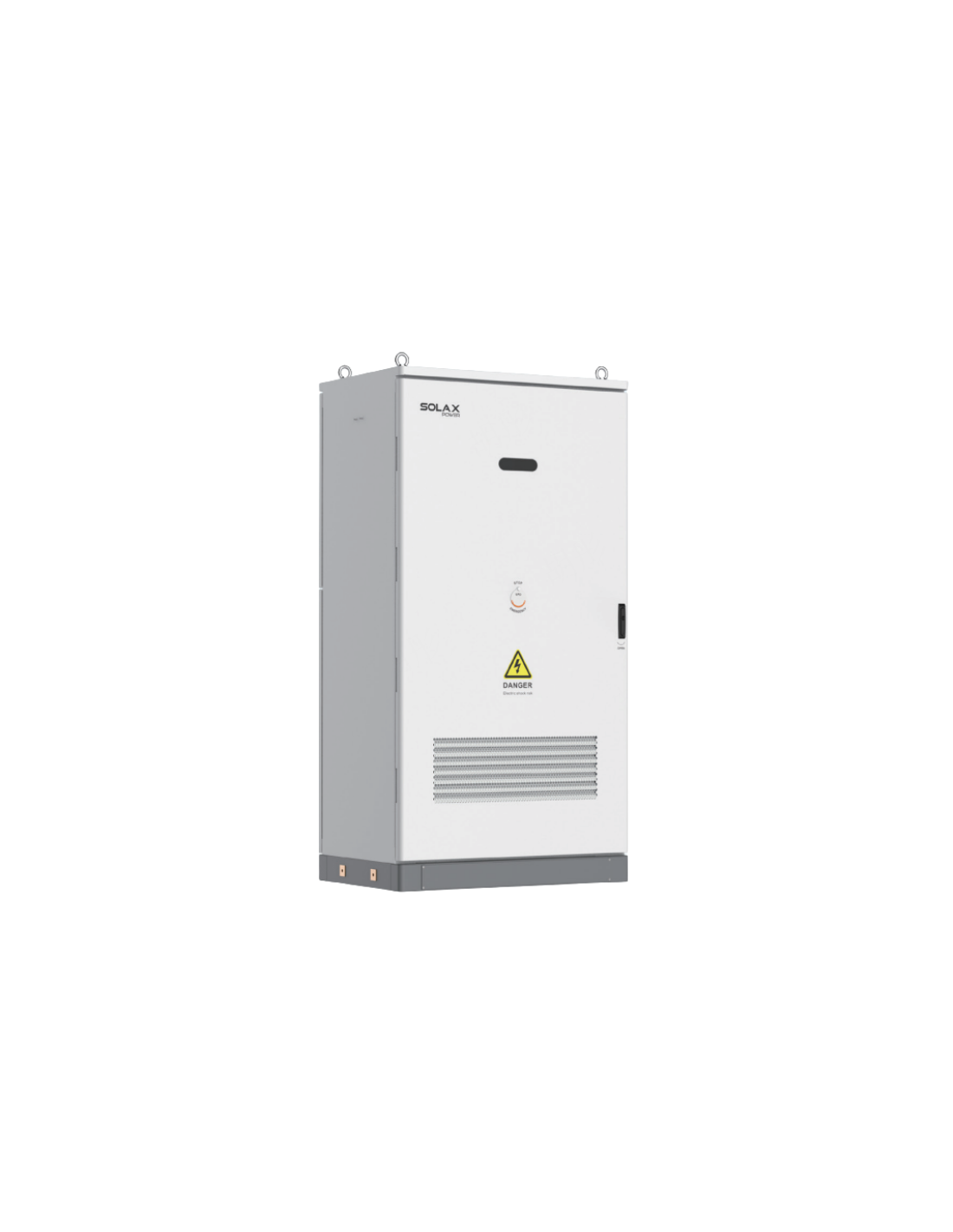

SolaX Nexus Zero ZERO-125 three-phase AC switching cabinet 125 kW
SolaX Nexus Zero ZERO-125 three-phase AC switching cabinet 125 kW
Regular price
€12,325.34
Regular price
Sale price
€12,325.34
Unit price
per
Tax included.
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices include 22% Italian VAT; the reduced 10% rate covers only goods for photovoltaic and storage systems, with a customer declaration. From abroad: choose 22% VAT, or for 0% VAT place the order by bank transfer without paying and we send you a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysThree-phase125 kWZero exportSolaX
SolaX Nexus Zero ZERO-125 three-phase AC switching cabinet 125 kW
The Nexus Zero ZERO-125 is the AC switching cabinet of the SolaX Nexus Zero range, sized for 125 kW of three-phase power.
The cabinet meters the flows at the delivery point and commands export limitation on the plant inverters, down to zero export when the contract or the grid operator do not allow energy to be exported. It also manages automatic separation and reconnection from the grid and gathers breakers, metering and signalling into a single cabinet.
Key strengths
Zero exportBlocks export to the grid when generation exceeds consumption.
Automatic switchingSeparates the plant from the grid and reconnects it with no manual action.
Sizes up to 1.25 MWA range dimensioned for commercial and industrial plants.
Real-time meteringReads the flows at the delivery point and commands inverter curtailment.
Built-in protectionBreakers, metering and signalling already fitted and wired in the cabinet.
SolaX compatibleTalks to the SolaX string and hybrid inverters of the plant.
Technical specifications
| Feature | Value |
|---|---|
| Product code | ZERO-125 |
| Manufacturer | SolaX |
| Series | Nexus Zero |
| Type | Switching and export limitation cabinet |
| Power supply | three-phase 400 V |
| Rated power | 125 kW |
| Actuation | Automatic grid/plant switching |
| Communication | Communication with SolaX inverters for power limitation |
| Certifications | CEI EN 61439 |
