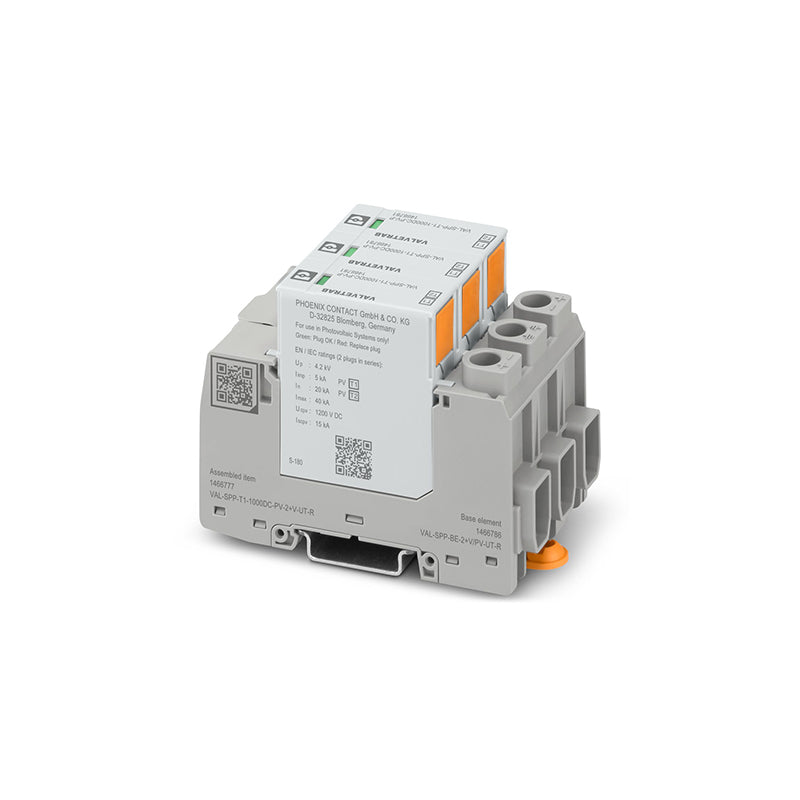

DC Surge Arrester Type 1+2 Phoenix Contact 1466777 VAL-SPP-T1-1000DC-PV-2+V-UT-R Remote
The Phoenix Contact VAL-SPP-T1-1000DC-PV-2+V-UT-R (article number 1466777) is a combined Type 1+2 arrester from the Safe Protection Plus family, for the direct current side of photovoltaic systems with a continuous operating voltage of up to 1200 V DC. Since it is tested with a 10/350 µs wave, it can also be used where the building is equipped with a lightning protection system (LPS) and the DC line may be affected by direct lightning current.
The construction uses a Y configuration (2+V) with three protection paths — DC+ / DC−, DC+ / PE and DC− / PE — on a three-position base with pluggable, thermally monitored protection elements, each fitted with optical status indication. The -R suffix identifies the base equipped with a remote signalling contact, which makes it possible to report the failure of an element to the plant supervision system; the UT suffix indicates the universal screw terminals. The device is installed on a 35 mm DIN rail in the DC combiner box, upstream of the inverter.
Key features
Combined Type 1+2 protectionA single device discharges the current from a direct lightning strike (Iimp 5 kA, 10/350 µs) and the induced surges (In 20 kA, 8/20 µs).
Remote signalling contactThe -R version integrates the remote contact to report the end of life of a protection element to the monitoring system.
Operating voltage up to 1200 V DCCompatible with photovoltaic generators with a 1000 V DC system voltage.
Three-path Y configurationDC+/DC−, DC+/PE and DC−/PE with a series spark gap: no leakage current to earth in normal service.
Monitored pluggable cartridgesThe elements are plug-in replaceable, with optical fault indication on each module and without touching the wiring.
UT universal terminalsM5 screw terminals for flexible conductors from 1.5 to 16 mm² and solid conductors from 1.5 to 25 mm².
Technical specifications
| Feature | Value |
|---|---|
| Product code | 1466777 |
| Product type | Combined lightning current and surge arrester for photovoltaic systems |
| System side | Direct current (DC), between the PV strings and the inverter |
| Brand and model | Phoenix Contact VAL-SPP-T1-1000DC-PV-2+V-UT-R — item no. 1466777 |
| Surge protective device (type) | Type 1+2 (class I + II, EN 61643-31) |
| Maximum continuous operating voltage Ucpv | 1200 V DC |
| Lightning impulse current Iimp (10/350 µs) | 5 kA per mode |
| Nominal discharge current In (8/20 µs) | 20 kA |
| Maximum discharge current Imax (8/20 µs) | 40 kA |
| Protection level Up | ≤ 4,2 kV |
| Protection modes | 3 (DC+ / DC−, DC+ / PE, DC− / PE) — Y "2+V" configuration |
| Remote signalling | Yes, remote signalling contact integrated in the base (-R version) |
| Protective devices | 3 thermally monitored pluggable cartridges, with optical indication on each module |
| Mounting | 35 mm DIN rail (3-position base) |
| Connection cross-section | Flexible from 1.5 to 16 mm²; rigid from 1.5 to 25 mm² (M5 screw terminals) |
| Protection rating | IP20C (with the device installed) |
| Operating temperature | From −40 °C to +85 °C |
| Dimensions | 53.4 × 96.6 × 71.5 mm |
| Weight | 0.359 kg |
| Standards | EN 61643-31 / IEC 61643-31 |
Documentation
PDFDatasheet 1466777Official manufacturer documentInstallation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
