GoodWe
GoodWe ESA CI0125K-04-00P All-in-One Storage System 125 kW 261 kWh LiFePO4
GoodWe ESA CI0125K-04-00P All-in-One Storage System 125 kW 261 kWh LiFePO4
Regular price
€67,114.90
Regular price
Sale price
€67,114.90
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysStorage batteryHigh voltage261.25 kWhGoodWe
GoodWe ESA CI0125K-04-00P All-in-One Storage System 125 kW 261 kWh LiFePO4

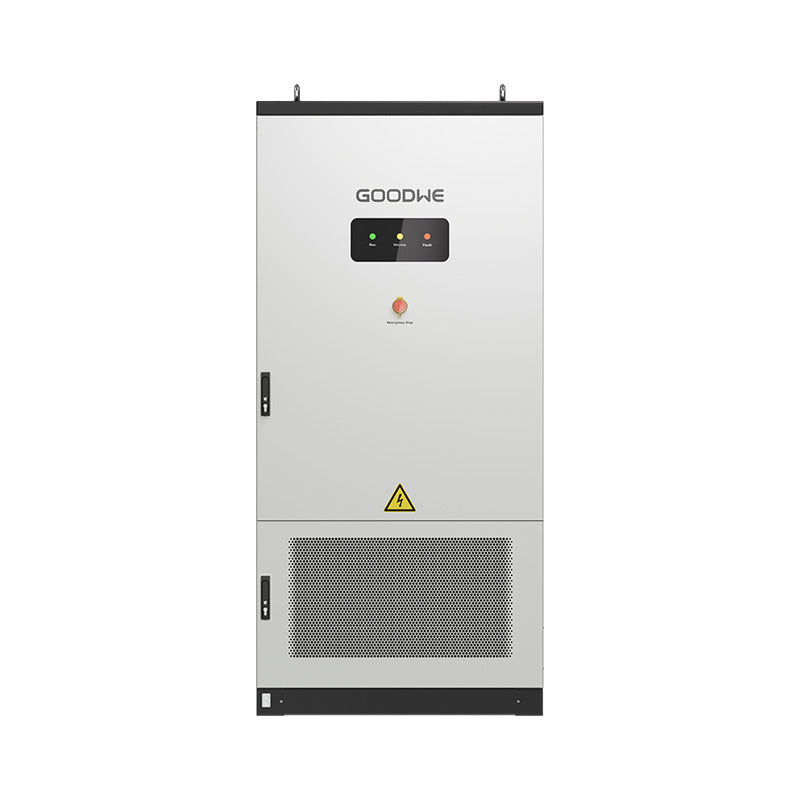

The GoodWe ESA 125 kW / 261 kWh (commercial code GW125/261-ESA-LCN-G10, item code CI0125K-04-00P) is an all-in-one storage system for commercial and industrial applications: PCS, batteries, BMS and EMS are integrated in a single outdoor cabinet. The storage section consists of 5 packs of 52.25 kWh with 314 Ah LiFePO4 cells, for a total of 261.25 kWh of nominal and usable energy, with a nominal voltage of 832 V and an operating range of 676-936 V.
The PCS delivers 125 kW nominal (up to 137.5 kW at 400 V) with a maximum efficiency of 98.6% and switching between charge and discharge in less than 60 ms. The system is scalable up to 20 units in parallel, equal to 2.5 MW / 5.22 MWh. The battery packs are liquid cooled while the PCS uses intelligent ventilation; safety is entrusted to an aerosol + water suppression system, to explosion-proof fans and panels and to humidity monitoring at pack level with automatic dehumidification. The cabinet is IP54, operates from -25 to +55 °C and communicates via Modbus TCP and Modbus RTU.
Key features
All-in-one C&IPCS, batteries, BMS and EMS integrated in a single outdoor cabinet ready for installation.
261.25 kWh usableFive packs of 52.25 kWh with 314 Ah LiFePO4 cells, nominal and usable energy coinciding.
Up to 2.5 MW / 5.22 MWhUp to 20 units can be connected in parallel for large-scale plants.
Liquid coolingThe battery packs are liquid cooled, the PCS uses intelligent ventilation: noise level ≤ 70 dB.
Multi-level safetyAerosol and water suppression, explosion-proof fan and plates, humidity monitoring with automatic dehumidification.
AI diagnosticsBattery diagnosis and state of health prediction with coordination between GoodWe PCS, BMS and EMS.
Technical specifications
| Feature | Value |
|---|---|
| Product code | CI0125K-04-00P |
| Model | GoodWe GW125/261-ESA-LCN-G10 (code CI0125K-04-00P) |
| Type | All-in-one commercial and industrial storage system (PCS + battery + BMS + EMS) |
| Chemistry | LFP (LiFePO4), 314 Ah cells |
| Nominal energy | 261.25 kWh (5 packs of 52.25 kWh) |
| Usable energy | 261,25 kWh |
| Rated voltage | 832 V |
| Voltage range | 676 - 936 V |
| Capacity | 314 Ah |
| Max charge current | 198,5 A |
| Max discharge current | 198,5 A |
| Charge/discharge power | 125 kW nominal AC; max 137.5 kW at 400 V and 130.6 kW at 380 V; max rate 0.5 P |
| Depth of discharge (DoD) | 90% ~ 100% (90% recommended) |
| Charge/discharge switching time | < 60 ms |
| Efficiency | PCS up to 98.6%; system up to 92.0% |
| Scalability | Up to 20 units in parallel (2.5 MW / 5.22 MWh) |
| Communication | Modbus TCP, Modbus RTU |
| Protection rating | IP54 |
| Cooling | Liquid-cooled battery packs; PCS with intelligent ventilation |
| Operating temperature | -25 ~ +55 °C |
| Noise level | ≤ 70 dB |
| Fire safety | Aerosol + water extinguishing; explosion-proof fan and plates (optional) |
| Dimensions | 1.050 x 2.250 x 1.400 mm |
| Weight | 2.580 kg |
| Floor energy density | 177,6 kWh/m² |
| Cycle life | Not declared in the datasheet |
| Warranty | Not declared in the datasheet (refer to the GoodWe C&I warranty) |
Documentation
PDFDatasheet CI0125K-04-00POfficial manufacturer documentPlease check compatibility with your inverter and with the other modules in the tower before ordering. Installation must be carried out by qualified personnel in accordance with the applicable standards.
