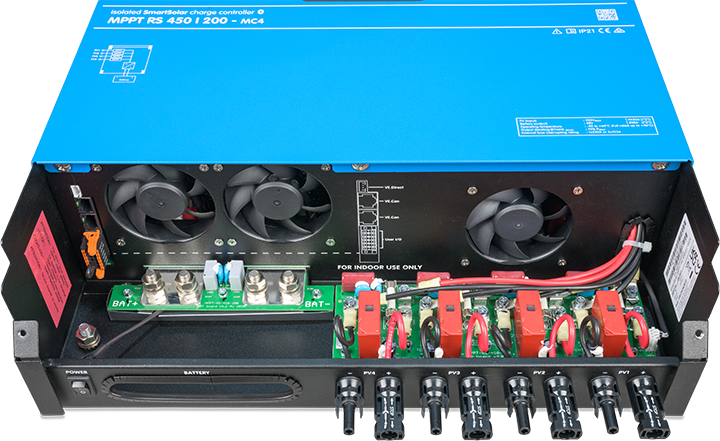

Victron Energy SmartSolar MPPT RS 450/200-MC4 solar charge controller 48V 200A
Victron Energy SmartSolar MPPT RS 450/200-MC4 solar charge controller 48V 200A is a Victron Energy solar charge controller. The declared figures are: Battery voltage 48 V, Max PV open-circuit voltage (V) 450, MPPT operating range 65 - 450 V. Product code: SCC145120512.
The SmartSolar MPPT RS is Victron's answer for large series-connected solar arrays charging 48 V battery banks, in off-grid and grid-connected systems. 5.76 kW and 11.52 kW models, 65-450 V DC PV input with independent trackers, isolated PV connections and a display.
The charge controller matches the panel voltage to the battery voltage and manages charging; MPPT models do so by tracking the maximum power point.
Key features
Victron part number: SCC145120512Manufacturer's declared figure.
Battery voltage: 48 VDeclared voltage value: check it against the limits of the connected equipment.
Max PV open-circuit voltage (V): 450Declared voltage value: check it against the limits of the connected equipment.
MPPT operating range: 65 - 450 VMaximum power point tracking of the solar array.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | SCC145120512 |
| Manufacturer | Victron Energy |
| Victron part number | SCC145120512 |
| Battery voltage | 48 V |
| Max PV open-circuit voltage (V) | 450 |
| MPPT operating range | 65 - 450 V |
| Max PV current per tracker (A) | 16 |
| Bluetooth | integrated |
| Maximum efficiency | 96 % |
| Protections | IP21 |
| Nominal charging current (A) | 200 |
| Max charging power | 11.5 kW at 57.6 V |
| MPPT tracker | 4 |
| Weight (kg) | 13.7 |
| Dimensions (mm) | 487 × 434 × 146 |
| VE.Can | yes (up to 25 units in parallel) |
| Galvanic isolation | full galvanic isolation between PV and battery |
| Warranty | 5 years |
