Solis 35.4 kWp Solar Kit with 15.36–30.72 kWh Battery – 30 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Solis 35.4 kWp Solar Kit with 15.36–30.72 kWh Battery – 30 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Regular price
€19,839.53
Regular price
Sale price
€19,839.53
Unit price
per
Tax included.
Couldn't load pickup availability
Solis 35.4 kWp Solar Kit with 15.36–30.72 kWh Battery – 30 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Scalable solution for commercial and industrial sites, built to maximise self-consumption
🚚 Delivery in 10–20 days for modules, inverter and storage; the AC (with CEI 0-21 interface protection) and DC protection panels have a 3–4 month lead time.
Commercial & Industrial Solar Kit
Three-phase hybrid PV system for grid-connected operation with energy management, storage and backup, designed around the Solis S6-EH3P30K-H inverter, for commercial applications.
| ☀️ 35.4 kWp Solar | 🔋 15.36–30.72 kWh Storage | ⚡ 30 kW Inverter | 🔌 Three-Phase Hybrid |

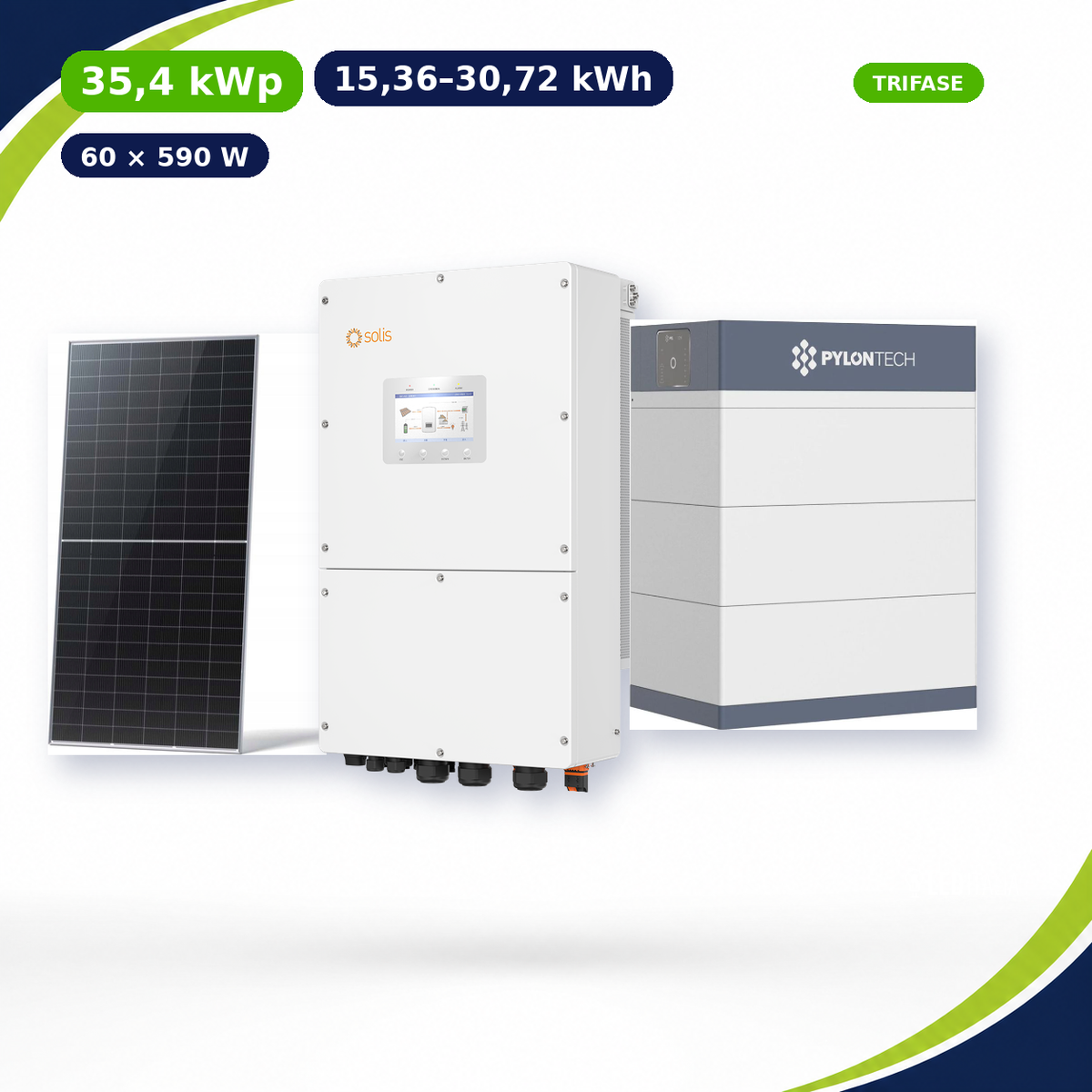

Kit Contents
60× 590 W N-Type TOPCon bifacial double-glass Silver Frame modules
for a total output of 35.4 kWp.
1× Solis SOL-S6-EH3P30K-H 30 kW Three-Phase High Voltage
Selectable storage:
Pylontech Force-H3 LiFePO4 307V with BMS — 15.36 kWh or 30.72 kWh (2× module).
1× Three-phase PV AC panel 30 kW 50 A with CEI 0-21 SPI, IP65
Protection and isolation of the AC grid connection.
1× PV DC panel 4 strings 4 MPPT 1000 V 32 A with 4 SPDs, IP66
Protection and isolation of the PV strings on the DC side.
PV String Design
Preliminary sizing with modules in a 4×15 configuration. This is a preliminary commercial study: the final string configuration, MPPT voltage and current limits must be re-checked against the datasheet of the inverter revision actually purchased and the site conditions (minimum design temperature).
Storage, Grid and Operation
- ✓Grid-connected operation with storage and energy flow management.
- ✓LiFePO₄ batteries.
A consistent, well-engineered system
The kit uses selected components and a PV configuration sized to the inverter’s electrical limits, for a robust, consistent commercial or industrial system ready for installation by qualified personnel. The kit includes only the specified PV panels, inverter, storage battery/batteries, and AC and DC protection panels. Mounting structures, cables, connectors and installation are not included and must be sized by the installer to suit the site. Installation and grid connection must be carried out by licensed personnel.
