Solis 47.2 kWp Solar Kit with 15.36–30.72 kWh Battery – 40 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Scalable solution for commercial and industrial sites, built to maximise self-consumption
🚚 Delivery in 10–20 days for modules, inverter and storage; the AC (with CEI 0-21 interface protection) and DC protection panels have a 3–4 month lead time.
Commercial & Industrial Solar Kit
Three-phase hybrid PV system for grid-connected operation with energy management, storage and backup, designed around the Solis SOL-S6-EH3P40K-H inverter, for commercial and industrial applications.
| ☀️ 47.2 kWp Solar | 🔋 15.36–30.72 kWh Storage | ⚡ 40 kW Inverter | 🔌 Three-Phase Hybrid |

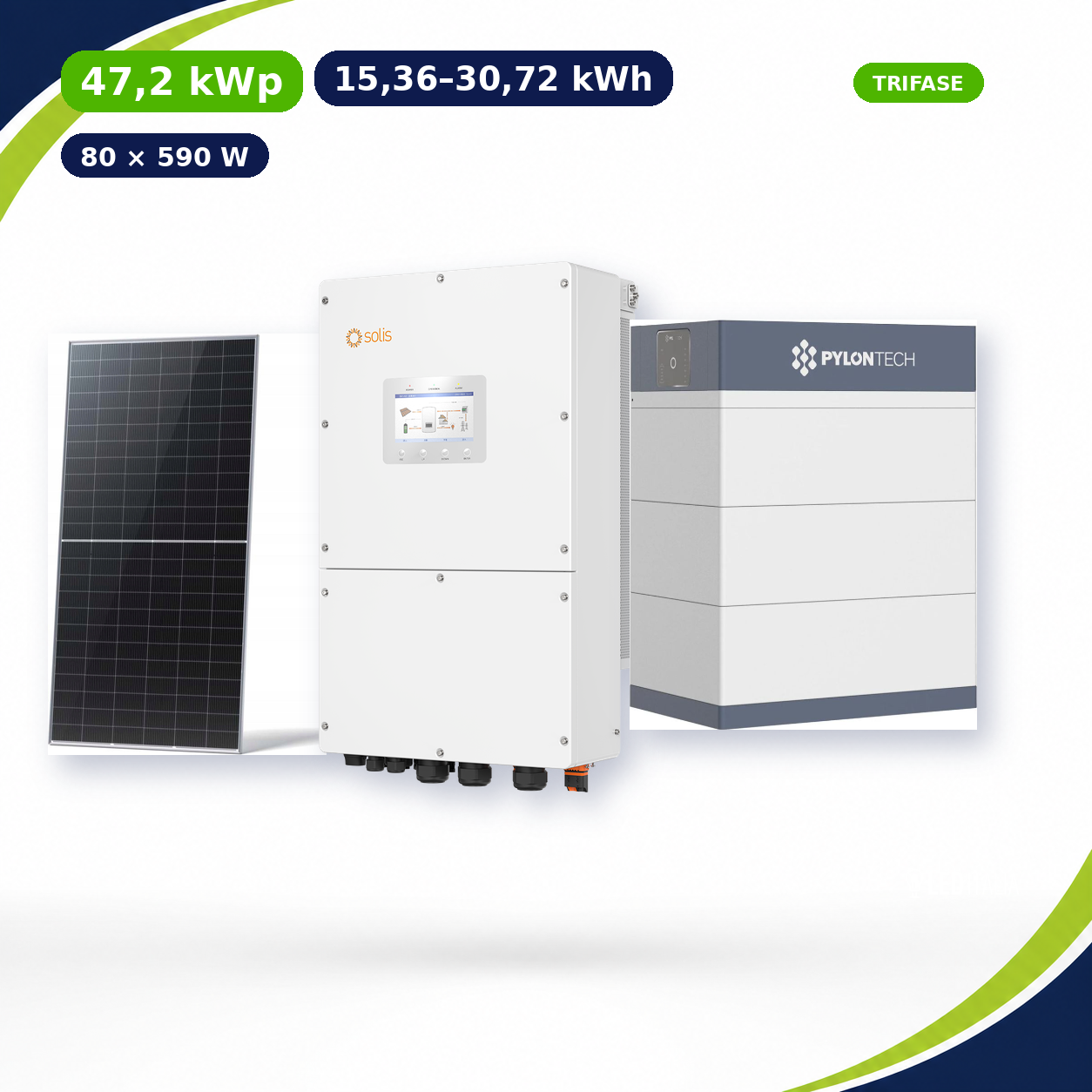

Kit Contents
80× 590 W N-Type TOPCon bifacial double-glass Silver Frame modules
for a total output of 47.2 kWp.
1× Solis SOL-S6-EH3P40K-H hybrid inverter
three-phase, 4 MPPTs.
Selectable storage:
Pylontech Force-H3 15.4 kWh 307 V with FC1000 BMS — 15.36 kWh or 30.72 kWh (2× module).
1× Three-phase PV AC panel 50 kW 100 A with adjustable RCD and SPI, IP65
Protection and isolation of the AC grid connection.
1× PV DC panel 8 strings 8 MPPT 1000 V 32 A with 8 SPDs, IP66
Protection and isolation of the PV strings on the DC side.
PV String Design
Calculated configuration: 8 independent strings of 10 modules across the 4 MPPTs. Operating voltage Vmp 443.5 V, Voc at 25°C 528.2 V, conservative Voc at −25°C 591.6 V — within the inverter's 1000 V limit and within the 150–850 V MPPT window. Module used: 590 W N-Type TOPCon bifacial double-glass Silver Frame module (Vmp 44.35 V, Voc 52.82 V, Imp 13.3 A, Voc coefficient -0.24%/°C). DC/AC oversizing ratio: 1.18×. Preliminary configuration: to be re-checked against the datasheet of the revision actually purchased and the site conditions.
Storage, Grid and Operation
- ✓Grid-connected operation with storage and energy flow management.
- ✓LiFePO₄ batteries.
A consistent, well-engineered system
The kit uses selected components and a PV configuration sized to the inverter’s electrical limits, for a robust, consistent commercial or industrial system ready for installation by qualified personnel. The kit includes only the specified PV panels, inverter, storage battery/batteries, and AC and DC protection panels. Mounting structures, cables, connectors and installation are not included and must be sized by the installer to suit the site. Installation and grid connection must be carried out by licensed personnel.
