Solis 9.09 kWp Solar Kit with 10.24–15.36 kWh Battery – 8 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Solis 9.09 kWp Solar Kit with 10.24–15.36 kWh Battery – 8 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Regular price
€6,895.92
Regular price
Sale price
€6,895.92
Unit price
per
Tax included.
Couldn't load pickup availability
Solis 9.09 kWp Solar Kit with 10.24–15.36 kWh Battery – 8 kW Three-Phase Hybrid Inverter, Commercial/Industrial
Scalable solution for commercial and industrial sites, built to maximise self-consumption
🚚 Fast delivery in 10–20 days.
Commercial & Industrial Solar Kit
Three-phase hybrid PV system for grid-connected operation with energy management, storage and backup, designed around the Solis S6-EH3P8K02-NV-YD-L inverter, for commercial and industrial applications.
| ☀️ 9.09 kWp Solar | 🔋 10.24–15.36 kWh Storage | ⚡ 8 kW Inverter | 🔌 Three-Phase Hybrid |

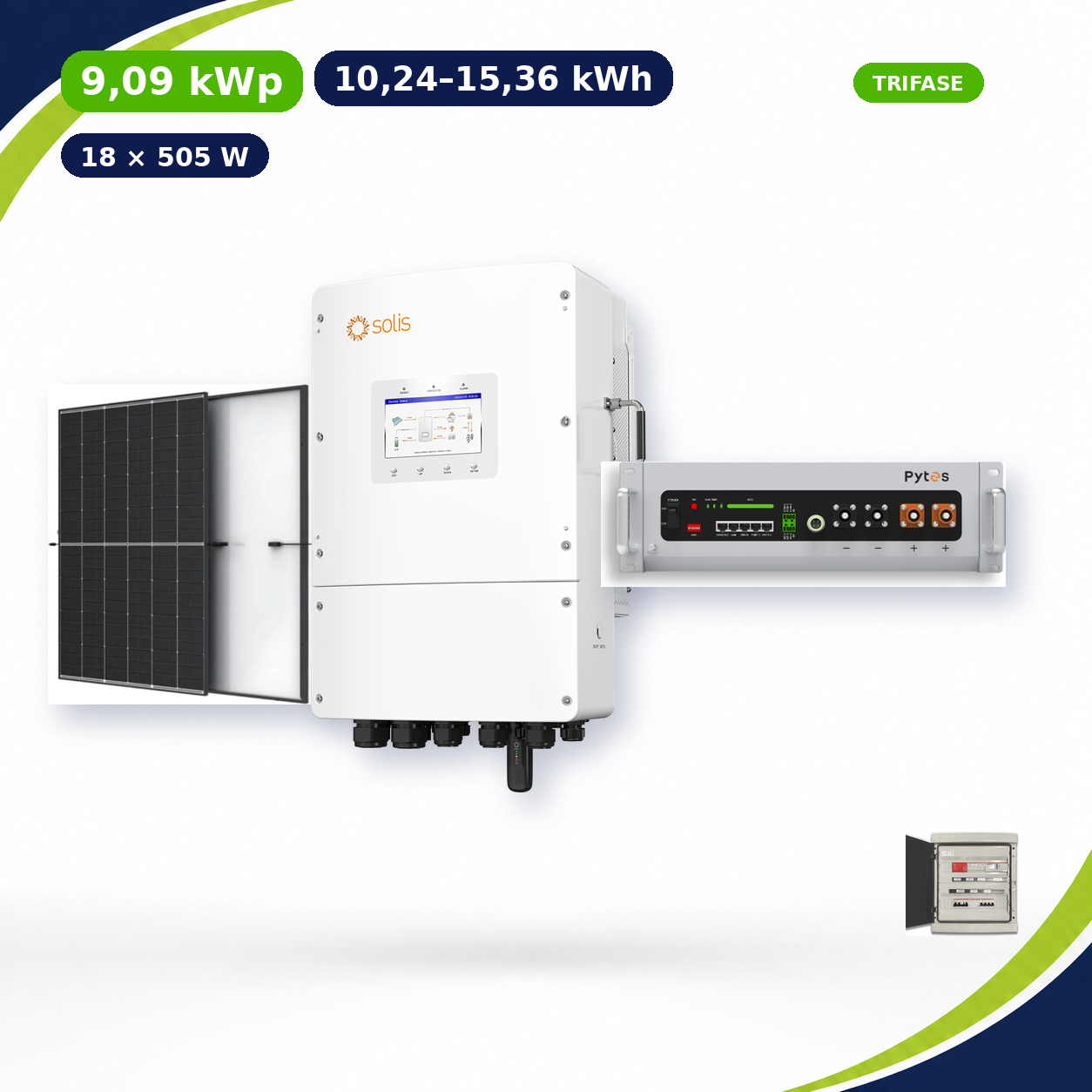

Kit Contents
18× Trina Vertex S+ 505 W N-Type TOPCon bifacial Full Black modules
for a total output of 9.09 kWp.
1× Solis S6-EH3P8K02-NV-YD-L hybrid inverter
three-phase, 2 MPPTs.
Selectable storage:
Pytes V5a 5.12 kWh 51.2 V — 10.24 kWh (2× module) or 15.36 kWh (3× module).
1× Three-phase AC field box 20 A with MCB, 300 mA Type A RCD and Type 2 SPD
Protection and isolation of the AC grid connection.
1× DC field box 1000 V for 2 strings/2 MPPT with Type 2 SPD and Stäubli MC4 connectors
Surge protection of the PV strings on the DC side; DC isolation is built into the inverter.
PV String Design
Calculated configuration: 2 strings of 9 modules, one per MPPT. Operating voltage Vmp 301.5 V, Voc at 25 °C 362.7 V, conservative Voc at −25 °C 406 V — within the inverter’s 1000 V limit and within the 200–850 V MPPT window. Maximum current per MPPT 15.1 A. Module used: Trina Vertex S+ 505 W N-Type TOPCon bifacial Full Black (Vmp 33.5 V, Voc 40.3 V, Imp 15.09 A, Voc coefficient −0.24 %/°C). DC/AC oversizing ratio: 1.14×. Preliminary configuration: to be re-checked against the datasheet of the revision actually purchased and the site conditions.
Storage, Grid and Operation
- ✓Grid-connected operation with storage and energy flow management.
- ✓LiFePO₄ batteries.
A consistent, well-engineered system
The kit uses selected components and a PV configuration sized to the inverter’s electrical limits, for a robust, consistent commercial or industrial system ready for installation by qualified personnel. The kit includes only the specified PV panels, inverter, storage battery/batteries, and AC and DC protection panels. Mounting structures, cables, connectors and installation are not included and must be sized by the installer to suit the site. Installation and grid connection must be carried out by licensed personnel.
